This tool is designed to time 2.5Ltr and 2.8Ltr CRD belt drive diesel engines, fitted with or without balance shafts in Chrysler and LDV vehicles.

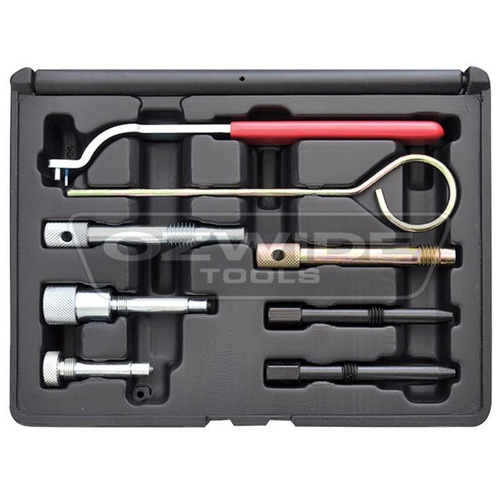

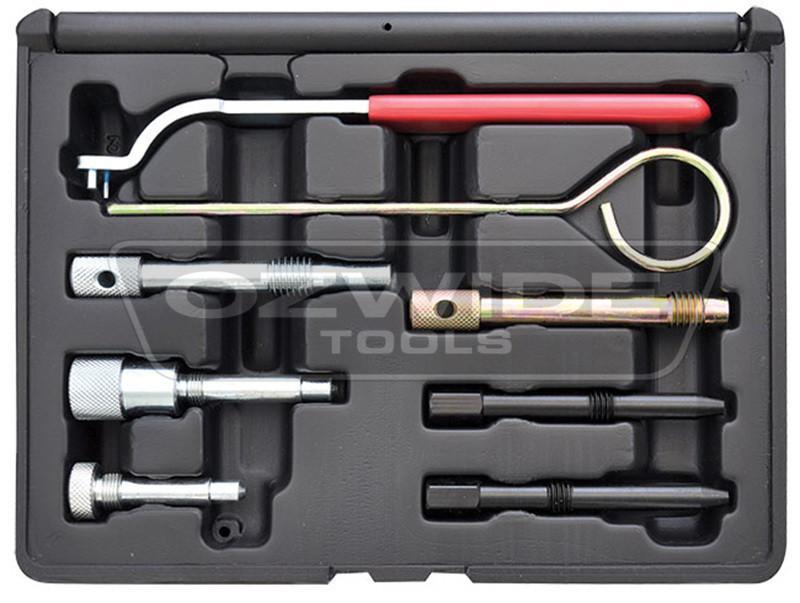

This tool kit contains:

• Camshaft locking pin (inlet) to be used as OEM VM1052
• Camshaft locking pin (exhaust) to be used as OEM VM1053
• Flywheel locking pin (Voyager/ Grand Voyager 2.5 / 2.8 and LDV Maxus) to be used as OEM VM1068 / VM1089
• Flywheel locking pin (Jeep Cherokee 2.8) to be used as OEM VM1080
• Flywheel locking pin (Jeep Cherokee 2.5) to be used as OEM VM8873
• Tensioner wrench to be used as OEM VM9660
• Balancer shaft locking pin
• Flywheel locking pin

NOTE: There has been an engine set-up change in mid 2007. If the vehicle you are working on has a single camshaft sprocket, this tool will not fit.
            See instead DM11-A1784

Models:

• Chrysler: Voyager / Grand Voyager (01-08)
• Jeep: Cherokee (01-08)
• LDV: Maxus (05-09)

Engines: CRD VM Engine - R2516C / R2516L / R2816C5.05A / R2816K / VM39-408

OEM: VM1068 (LDV196) / VM1089 (LDV198) / VM1053 (LDVI93) / VM1052 (LDV192) / VM074 (cam belt holding tool)
          VM9660 (H2587 / U30009 / Matra V159 / 127-17 / MP 1-302) LVDV80
