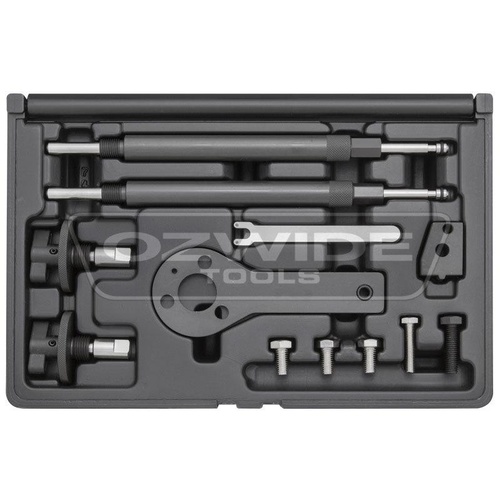

This kit contains the timing tool required to cover the belt replacement procedure for the both early and later variant of the Fiat 1.2L engines, it includes piston height gauge, camshaft and crankshaft tools, tensioner adjuster, and camshaft sprocket locking tool.

This Fiat range of 1.2 16 valve petrol engine was first introduced as long ago as 1997 in Punto, and a number of variant releases including 1.4 range of 16 valve/T-Jet engine.

The majority of these engines use the same timing tool combination and procedure for the timing belt replacement. However, engine code 192B2.000, 198A1.000, 198A4.000, 199A6.000 and 199A8.000 require an additional tool to lock the camshaft sprocket, and engine code 169A3.000 requires a different tool combination and has a slightly different procedure.

Models: Fiat 500 / Brava / Bravo / Punto / Grande Punto / Idea / Marea / Marengo / Palio / Stilo

Engines:

  • 1.2L - 169A4.000 / 182B2.000 / 188A5.000 / 199A4.000 / 176B9.000 / 169A4000 / 182B2000 / 188A5000 / 199A4000 / 176B9000
  • 1.4L - 312A3.000 / 169A3.000 / 192B2.000 / 198A1.000 / 199A6.000 / 199A8.000 / 169A3000 / 192B2000 / 198A1000 /  199A6000 / 199A8000

OEM: 2.000.004.500 / 1.860.985.000 / 1.860.992.000 / 1.860.987.000 / 2.000.015.800 / 2000004500 / 1860985000 / 1860992000 / 1860987000 / 2000015800





(DM13-T204)

SKU DM13-T204
Brand OzwideTools
Shipping Weight 1.5000kg
Shipping Width 0.190m
Shipping Height 0.060m
Shipping Length 0.290m
Shipping Cubic 0.003306000m3
Unit Of Measure ea
