This 6 way breakout lead features the largest 2.8mm size in the range of 4 sizes (1mm, 1.5mm, 2.3mm and 2.8mm) male to female blade type terminals, which are commonly found on automotive sensors, actuators, harness connectors and control modules.

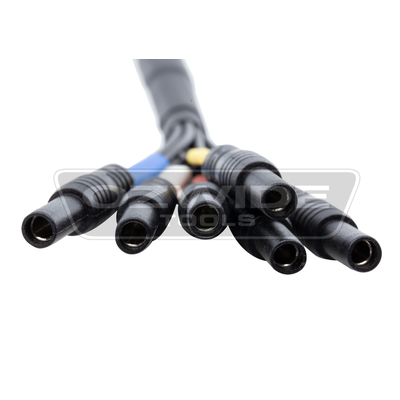

Each pair of male to female terminals is colour coded, white, red, green, blue, yellow and black and are spliced to a 4mm female banana type plug, also identified by a colour coded band.
These leads have been developed to allow for interconnection between sensors or actuators with up to six connector pins and their harness plugs.
The leads are 380mm long to ensure minimal stress to components and greater flexibility when access is limited.
This method of connecting to a multi-meter or oscilloscope allows us to view up to 6 inputs/outputs at one time with minimal intrusion or potential damage to fragile components, where back probing a connector may be difficult
and puncturing wires may lead to further problems, such as corrosion, in the future.
The industry standard 4mm banana plug is designed to accept 4mm basket type male test probes as found on quality multimeters and oscilloscopes for example DM16-HT30A Auto Test Leads.



The 4 variants of DM16-HT306 leads are also for use when bench testing components such as EGR valves, ELECTRONIC THROTTLE CONTROL motors,SOLENOIDS or FUEL INJECTORS.
They allow for a quick and secure way to connect to these components with minimal potential to damage connector pins.

If this is your first purchase of these leads we highly recommend purchasing the full 4 sizes which can be brought as a combo pack DM16-HT306





(DM16-HT306-2_8MM)

SKU DM16-HT306-2_8MM
Brand OzwideTools
Shipping Weight 0.0500kg
Shipping Width 0.045m
Shipping Height 0.025m
Shipping Length 0.390m
Unit Of Measure Each
