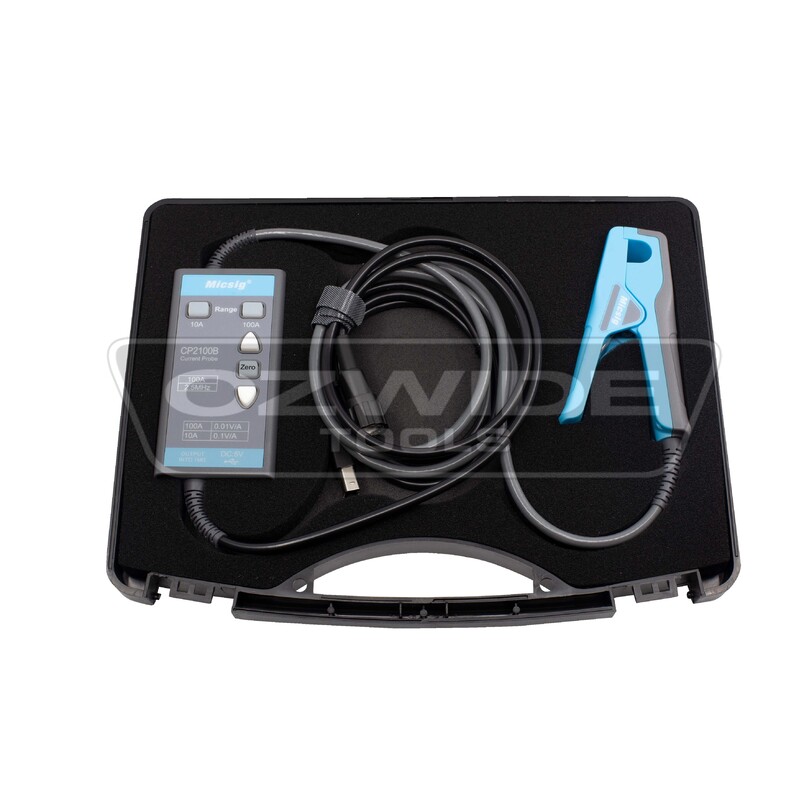

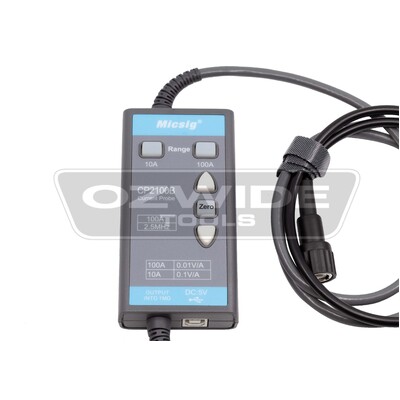

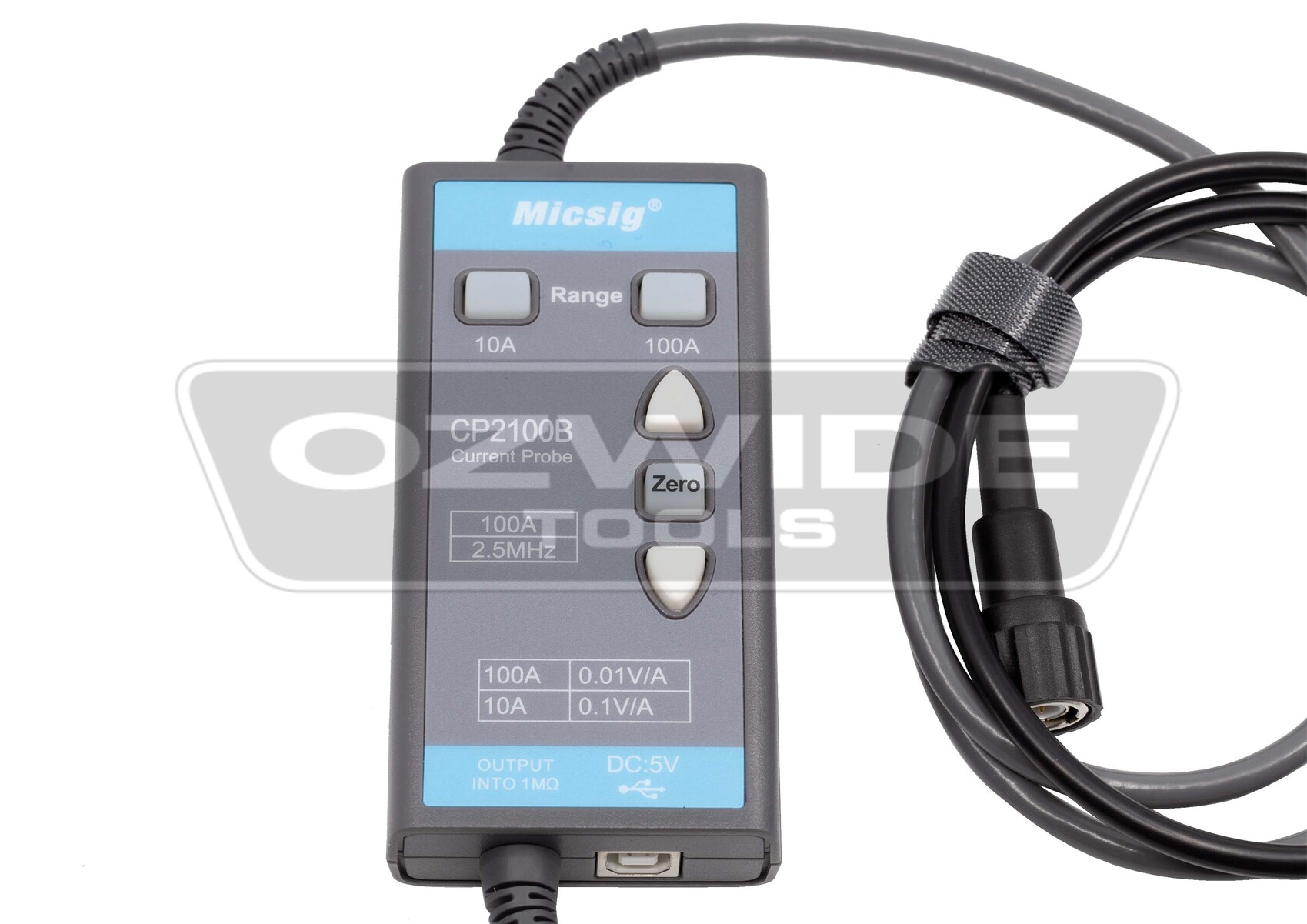

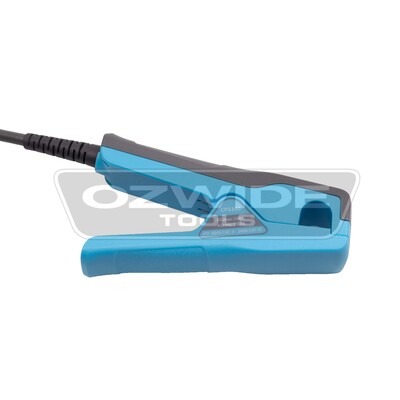

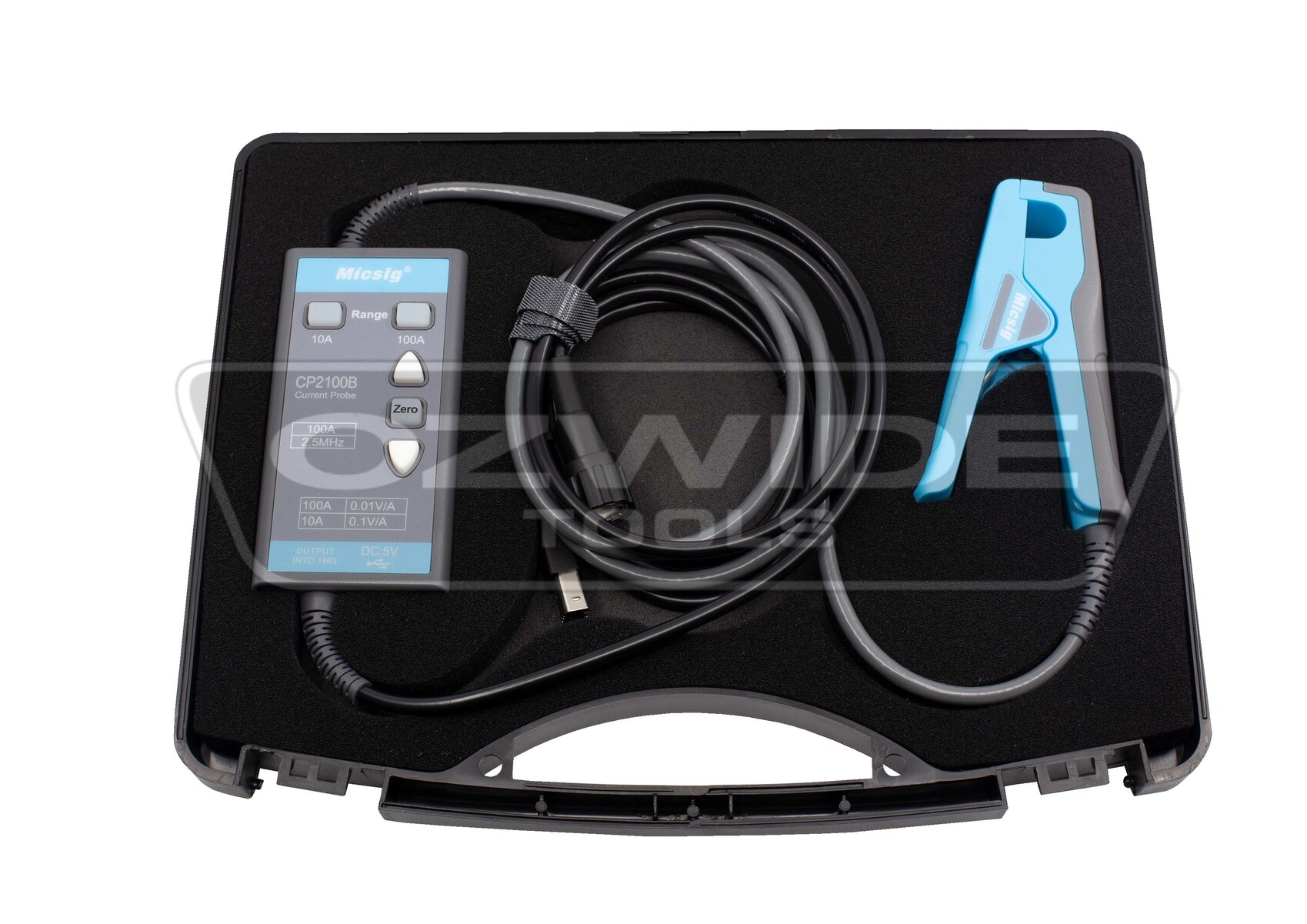

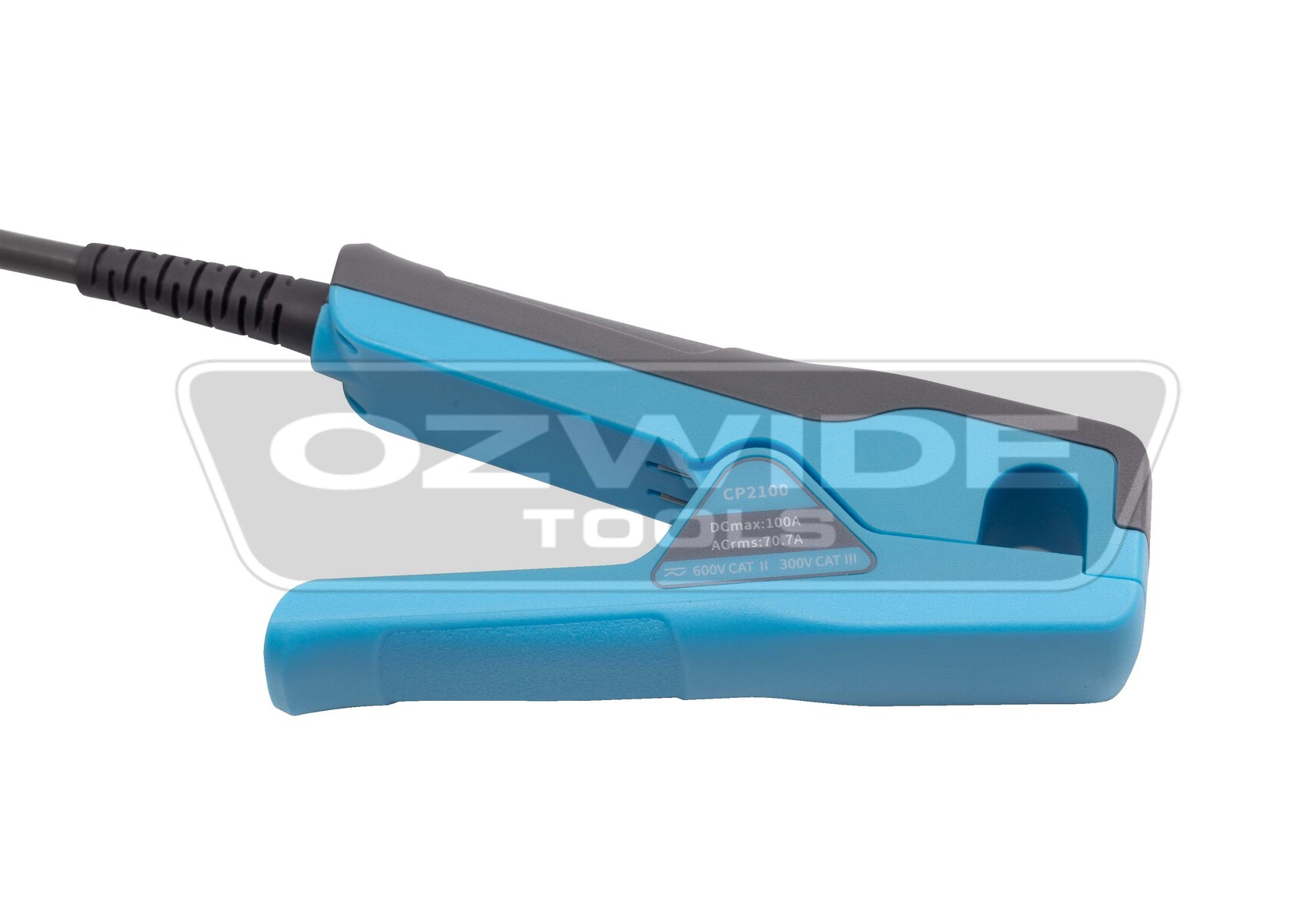

The CP2100 series is a current probe that can measure both DC and AC.

It uses a standard BNC interface and is suitable for oscilloscopes.
It can also be used for multimeters via connector. The maximum current can be measured to

100Apk (70Arms); it has 2 models: CP2100A and CP2100B, CP2100A can measure
bandwidth to DC 800KHz,CP2100B can measure bandwidth to DC 2.5MHz; 2 optional measuring ranges: 10A and 100A.

Automatic and manual zero adjustment, powered by USB, no additional power supply, making measurement more convenient.

Often used in motor drives, industrial frequency, inverters, power supplies, avionics and other fields

measurement more convenient.

Often used in motor drives, industrial frequency, inverters, power supplies, avionics and other fields



(MS-CP2100B)

SKU MS-CP2100B
Shipping Weight 0.9500kg
Shipping Width 0.250m
Shipping Height 0.070m
Shipping Length 0.310m
