PicoScope 4425A 4 Channel EV Kit

Product Description

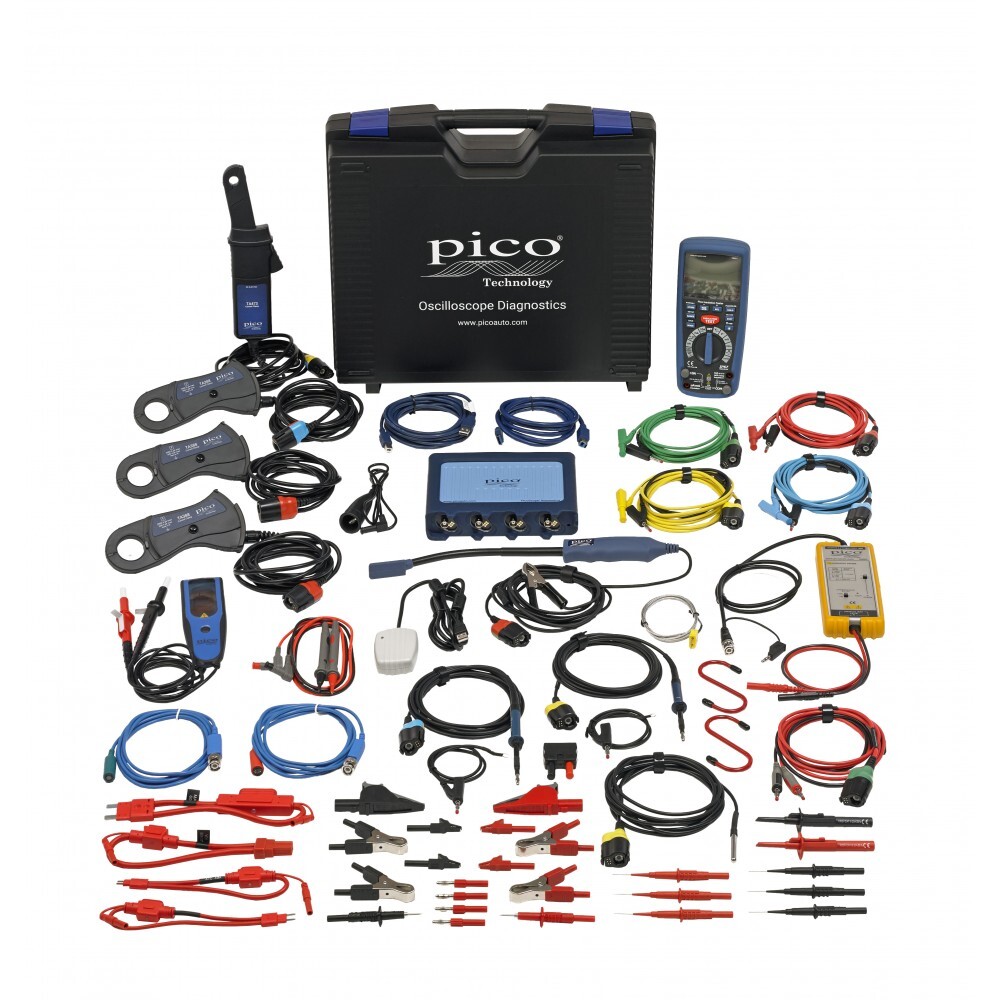

Pico Scope EV Kit (PQ196) This is a new kit. It is optimised for technicians to be safely working on Electric Vehicles, but can be used on any vehicle or equipment. As with all kits, the accessories in this kit can be used with other kits, and vice versa. The kit is supported by a new set of EV Guided Tests that will be extended over the coming months as new systems, routines and faults become apparent over time. The key elements of the kit are 3 high-current clamps, a 2-pole voltage tester, PC-linked insulation tester, and a high-voltage differential probe. The kit covers a wide variety of systems and all vehicle technologies: 48V Mild Hybrids

Starting and Charging systems both 48V and 12V
Cell measuring on 48V Battery
DC-DC Charging
Standard ICE testing

Full & Plugin Hybrid

Insulation component testing
3 phase current testing where possible
MG position sensor testing
DC-DC Charging
CP and PP charging confirmation
Standard ICE testing
Safe shut down and start up sequence
Power output measurements with current and voltage

BEV (Battery Electric Vehicle)

Safe shut down and start up sequence
Insulation component testing
MG position sensor testing
DC-DC Charging
3 phase current testing where possible
CP and PP charging verification
Power output measurements with current and voltage
Safe shut down and start up
Insulation component testing
MG position sensor testing
DC-DC Charging
3 phase testing where possible
Main air pump testing
Power output measurements with current and voltage
