ESCOPE ELITE8 combined with an AU Microsoft  128gb Tablet with 8gb Ram to create a powerful diagnostic foundation to your ATS arsenal.

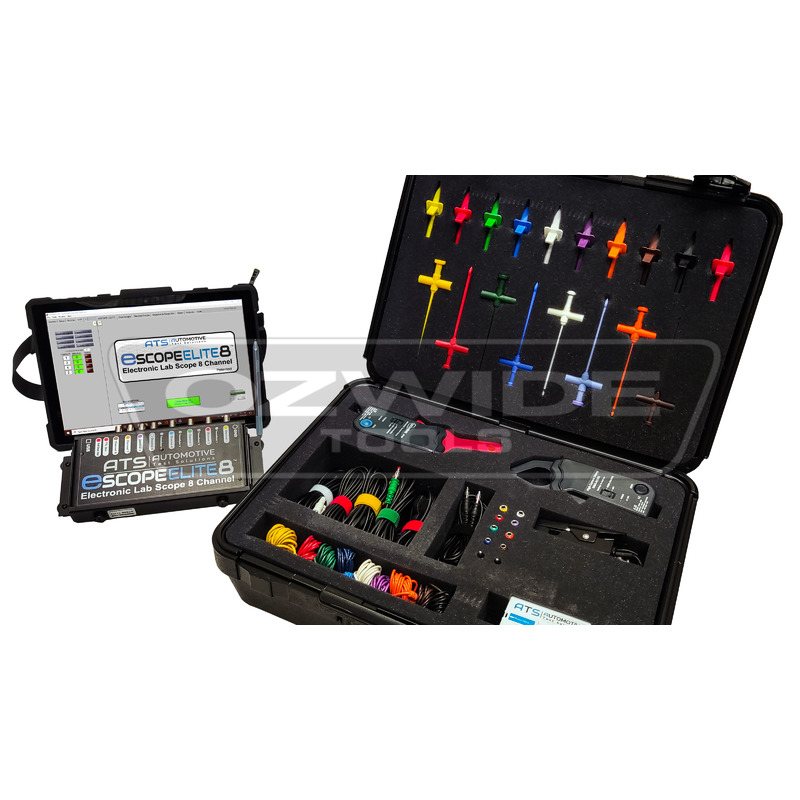

ATS Combo Kit Comprising of:
1 x ESO3100 - E-Scope 8ch with Accessory Box
1 x DM20-MS7PRO-128 - Microsoft Surface Pro 7+, 128gb, 8gb Ram
1 x DM20-MSPEN - Microsoft Surface Pen (Specially coded to suit ATS software)
1 x DM20-UAG-SURFACECASE - UAG Surface Cover with convenient hand hold strap at rear

Designed by the team at ATS for technicians in a workshop enviroment (not a lab)

► NEWLY ADDED DTC Stop Scope feature allows the Automotive Test Solutions eSCAN ELITE (purchased separately) to stop the eSCOPE ELITE Deep Record when a pending, or permanent DTC is set. This ensures a data capture at that moment.

► Capture All Data: ATS’ unique circular buffer system does not drop data.  No data gap will ever be present on our scopes; this means you will never lose data that occurs between samples on an intermittent fault or fail to capture the vehicle’s faulty event.

► Ultra Sharp Wave-forms: No need for filters that can mask data. ATS designs our scopes so the signal is accurate and clean.

► Dual Time Base:  This allows two different frequencies to be displayed on one screen with two different scope displays, simultaneously.  This also allows separate triggers and/or trigger modes on each time base. It’s like having two scopes in one.

► Pull Down Circuit: A Controlled pulse that sinks power from vehicle circuit to ground.  Control circuits like ignition coils, fuel injectors and solenoids.

► TTL Output: Sends a 0-5v square wave signal out of scope.  Turn on devices such as ignition coil drivers, test vehicle’s circuits, and test vehicle’s circuits for loading.

► Automatic Test Lead Connection Detection: This unique feature allows you to know the scope lead has a good connection. “Red”= Bad connection.  “Green”= Good connection.  It’s that easy!

► No Time, Voltage, or Trigger Setup Needed: With the powerful Deep Record function, you can grab a large amount of data without any setup at all. Then simply zoom in to see what happened! Turn signals on/off, and rearrange waveforms as you wish. Saved files can be reopened and manipulated in the same way at any time.

► Automatic voltage attenuator: Just change the voltage setting and the scope does the rest.

► Pressure Transducers: Drives four pressure transducers at once with full pressure/vacuum conversions.

► Patented Overlay Technology: ATS’ unique programming overlays an engine cycle grid over your waveforms. Works great with pressure transducers!

Check out the features of the eSCOPE ELITE8:
Number of Channels:

A/D Vertical Converter Resolution:

Maximum Scope Throughput:

Voltage Attenuator:

Display Modes:

Deep Record Mode:

Pressure Transducer:

Ignition analyzer:

PC Compatible: - Not Mac

Power Requirements:
USB connection to PC:

Scope Storage:
​8 traces.

Separate colors for each channel that match leads.

16 bit (65,536 discrete levels).  This gives very fine voltage resolution over a very large voltage range.  I.E. +/-20 volt range has a 0.0006 mV resolution.

1 Mega samples per second.

Up to +/-500V software selectable attenuator built into scope.

Dual Screen, Single Screen, Stacked Scope, Measure and Deep record, and Meter.

Allows data to be recorded without any setup at all and without missing any data.  Then use features such as zoom in, zoom out, zoom window, zoom reset and cursors.  Apply filtering, turn signals on/off, and rearrange waveforms as you wish. Saved files can be reopened and manipulated in the same way at any time.

Drives four pressure transducers at once with full Pressure/Vacuum conversions. Additionally the eSCOPE ELITE8 comes with patented pressure transducer overlays.

Includes full ignition analyzer software.

Runs on any Windows based PC.

Powered via PC’s USB connector.

USB 2.0 or USB 3.0.

Unlimited Storage of waveforms and settings

FINANCE AVAILABLE:
Finance on this unit is available through ZIP Money or speak to the staff about our other financing service.





(ESO3000-AU)
