Description

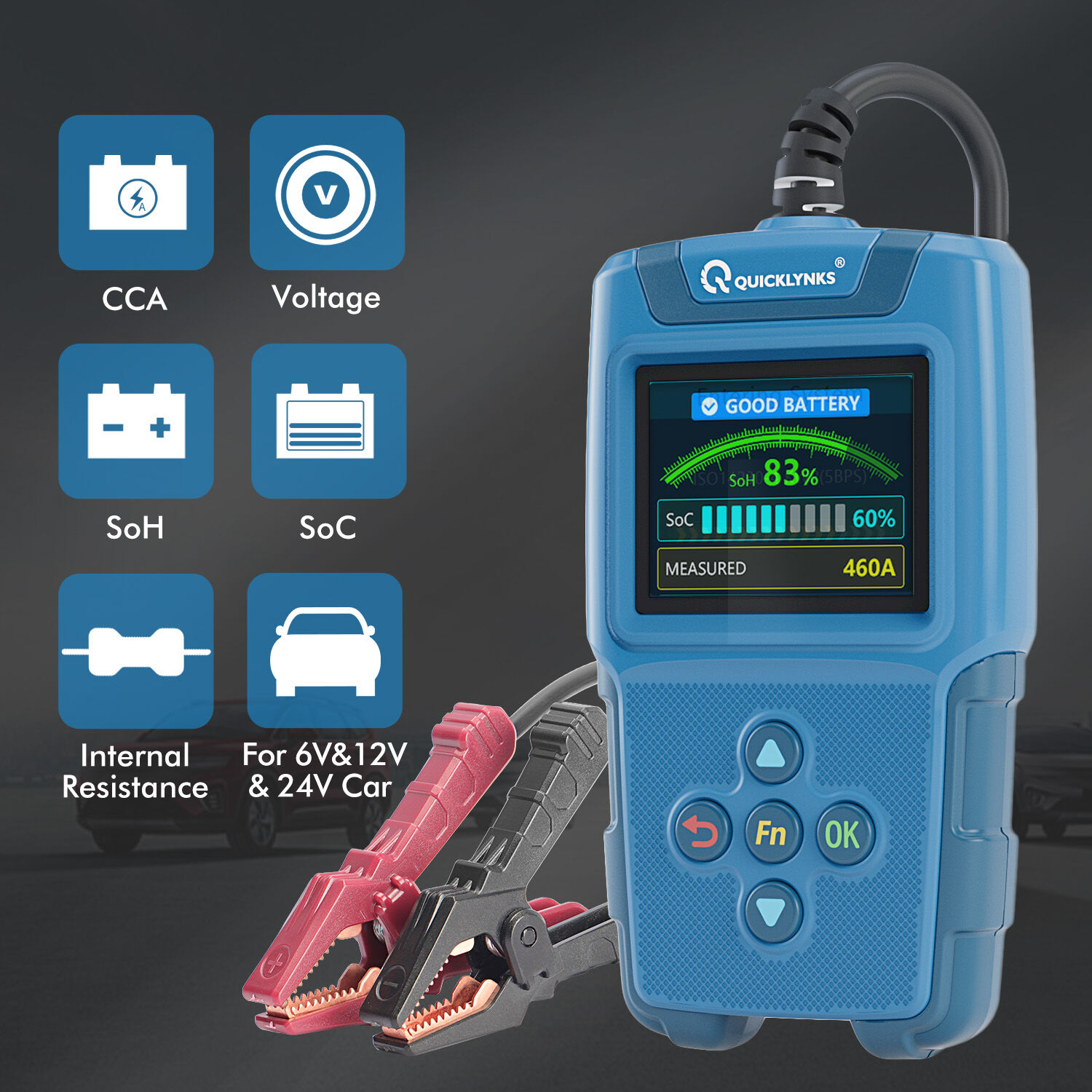

Designed to accurately measure the cold cranking amps and battery health of the vehicle's battery without damaging the battery performance.
Although this does not have a built in printer, you can easily connect it via a USB to the computer to print out any tests
Function Descriptions

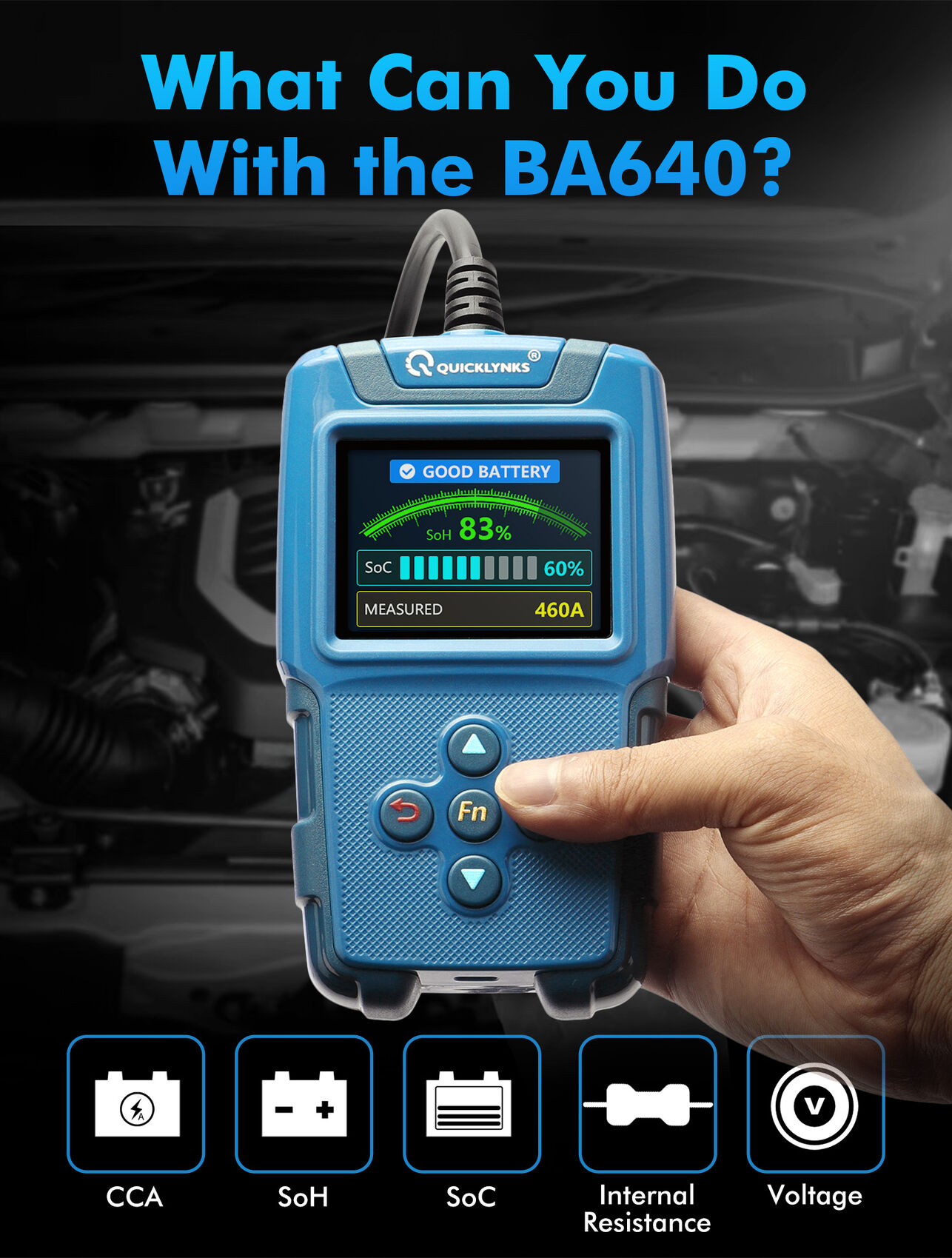

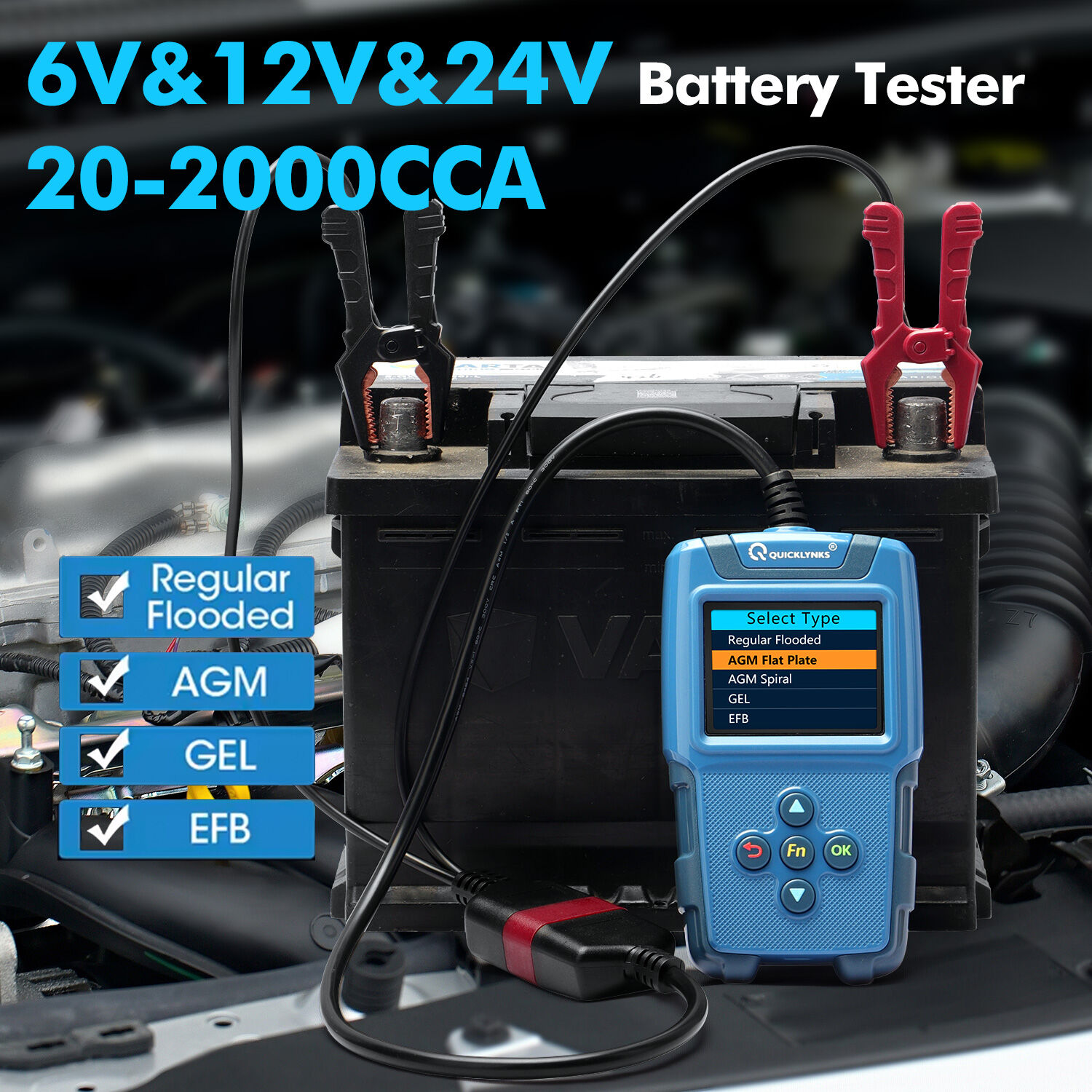

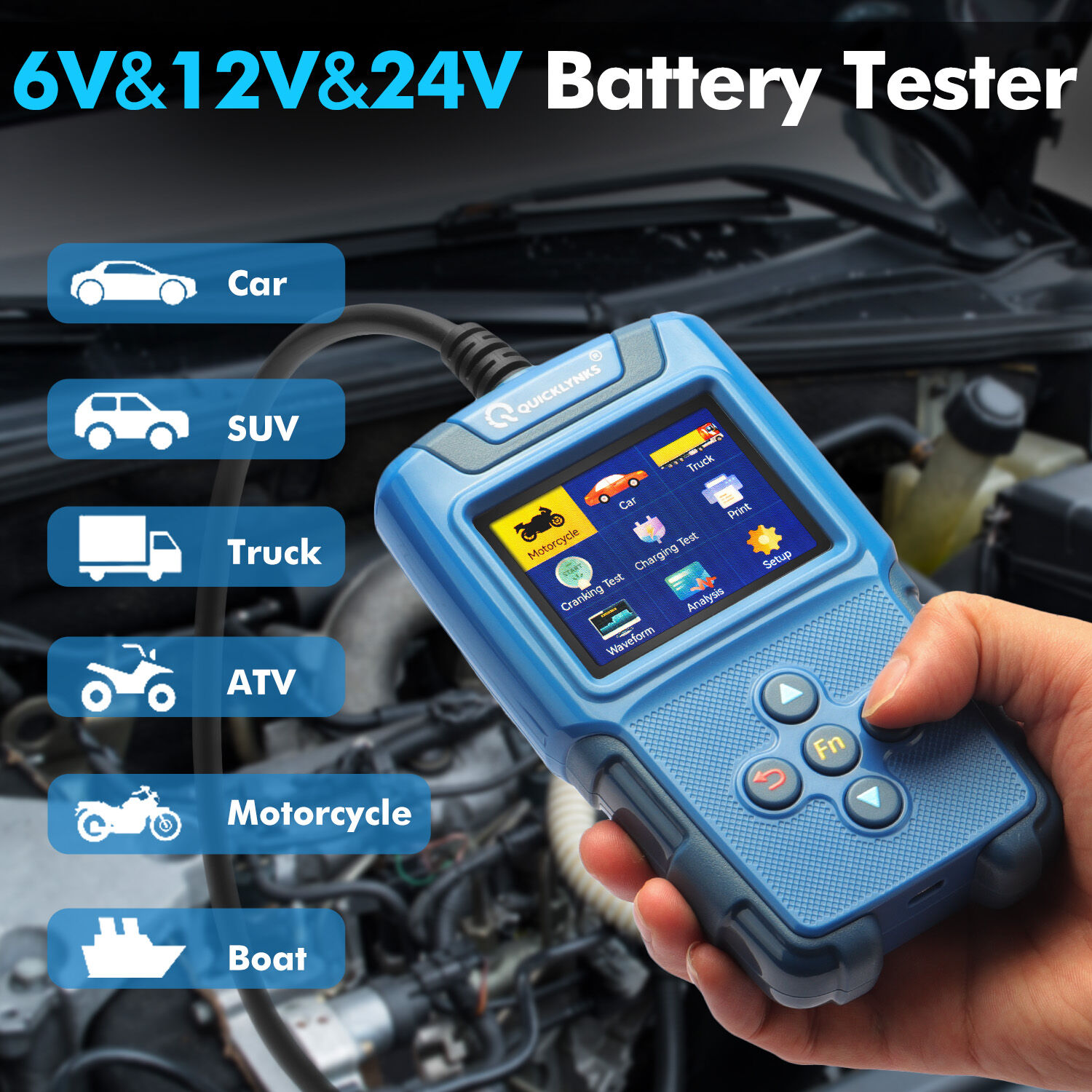

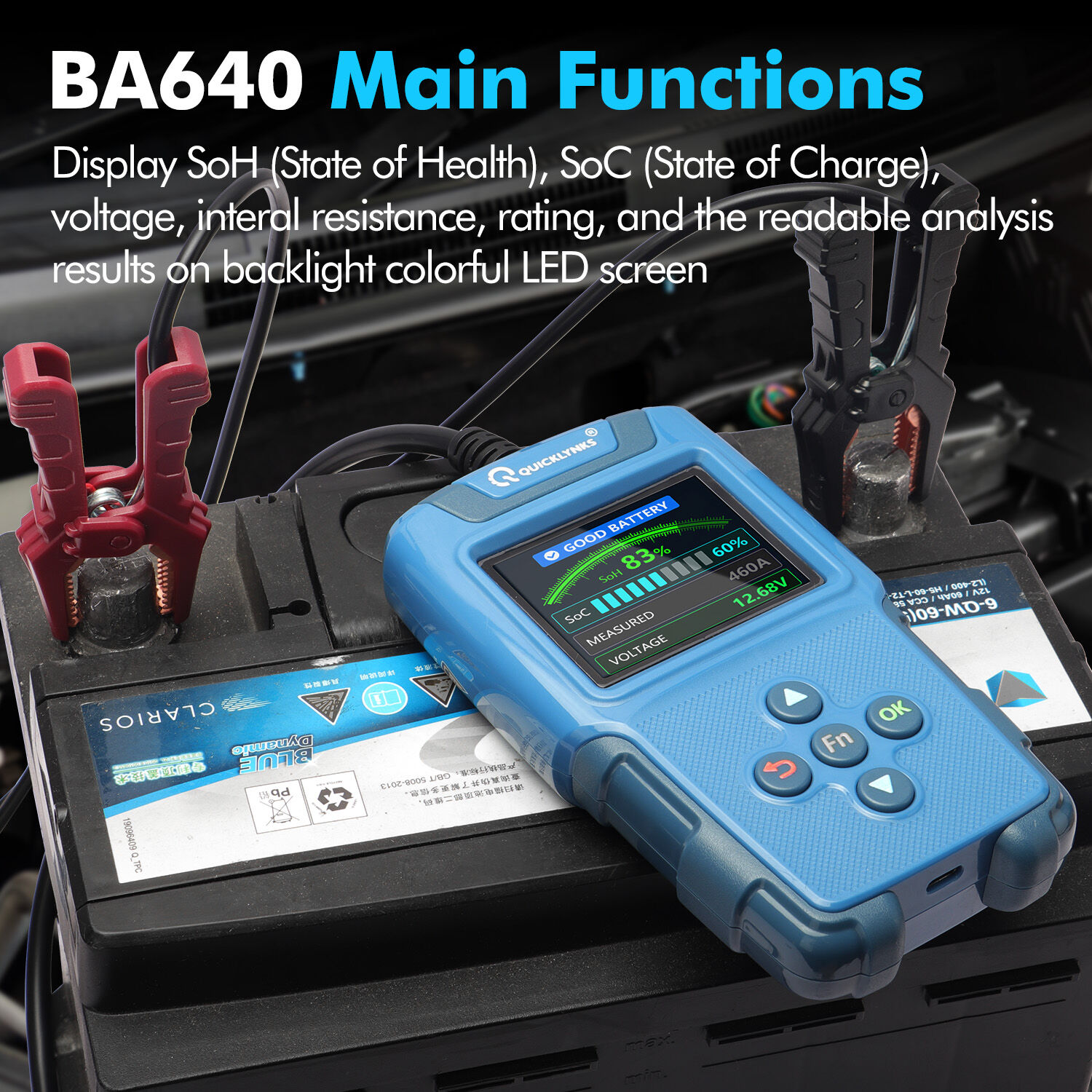

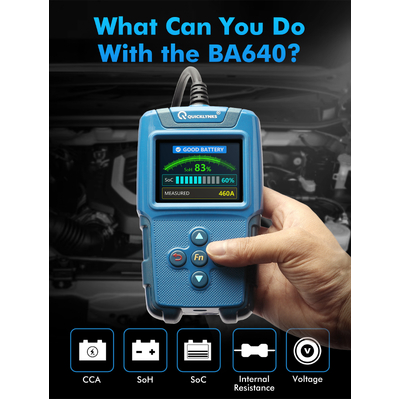

Test the 24V/12V/6V lead-acid battery CCA (cold cranking amps), internal resistance/voltage/state of charge/state of health.
Test the 24V/12V vehicle cranking system and charging system.
One-key quick test function for batch battery continuous test or real-time voltage curve.

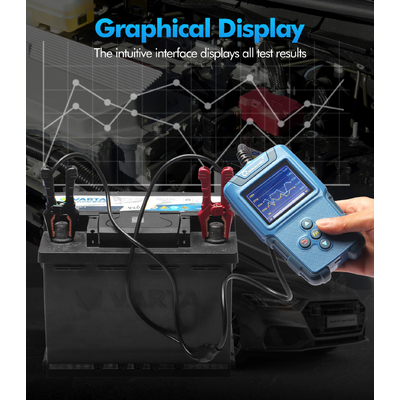

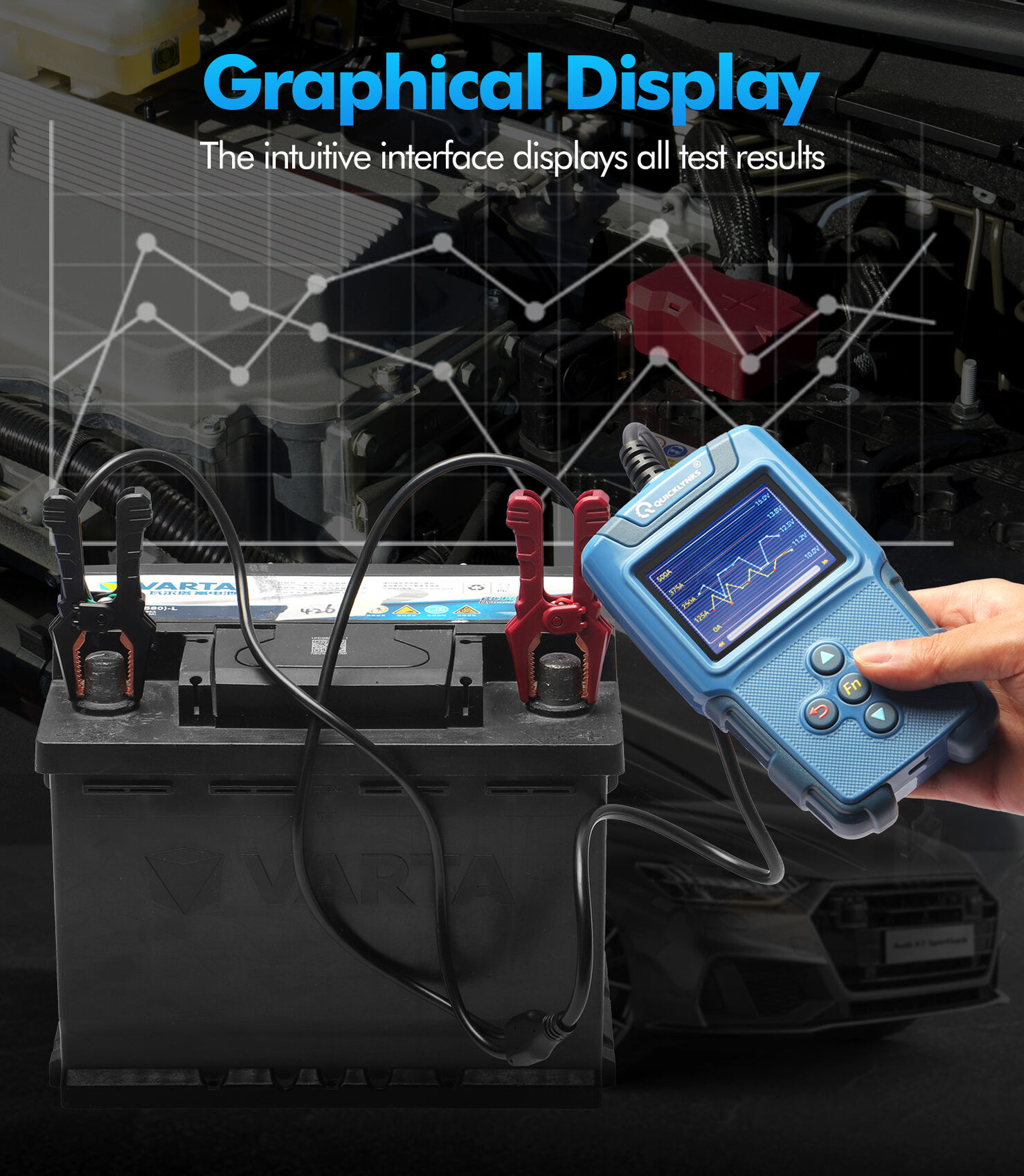

Real-time voltage curve graphic display, can be saved up to 120 seconds and played back.
Can save up to 1400 historical test records, including battery test, cranking test, charging test, voltage curve, 350 records each.

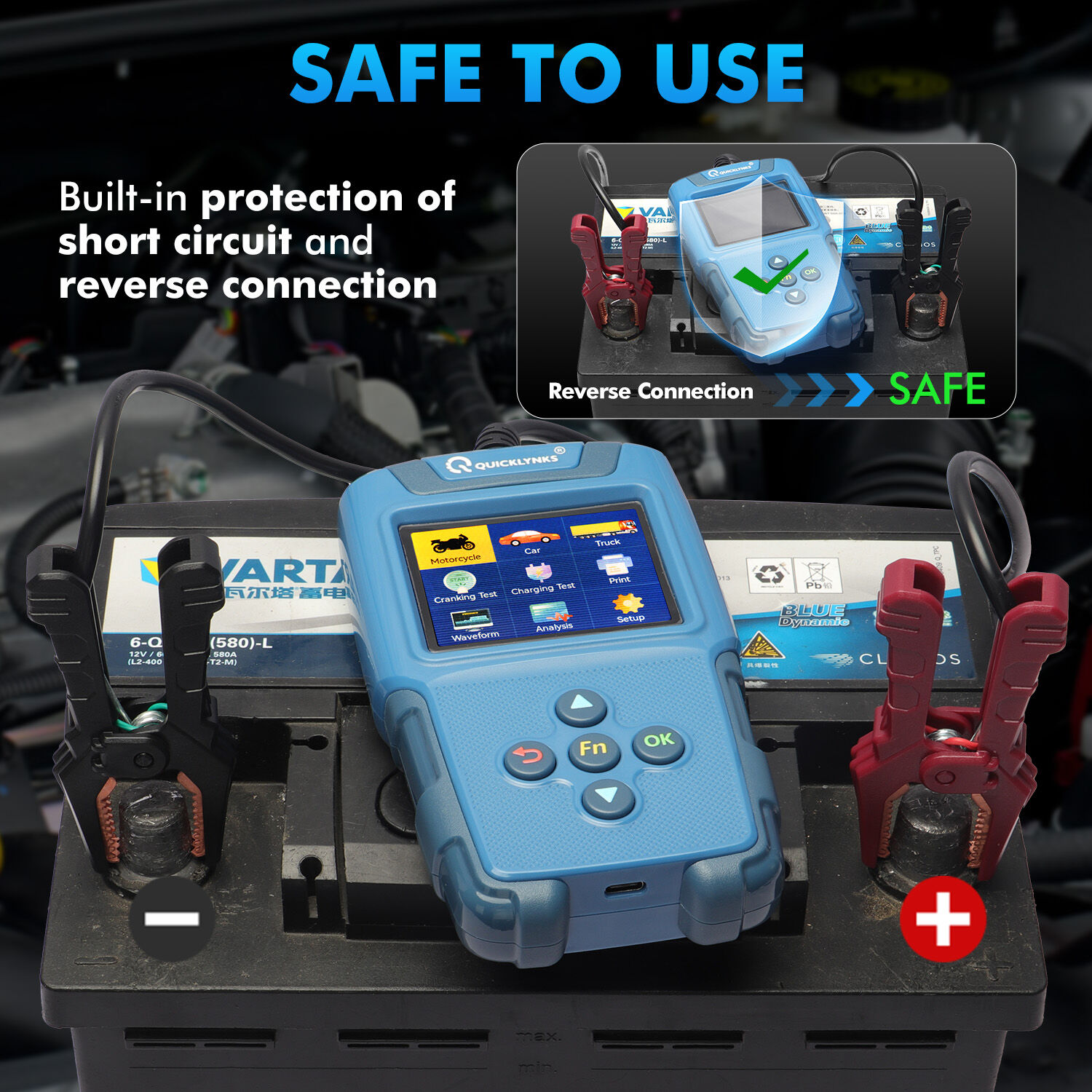

Built-in protection of short circuit and reverse connection.

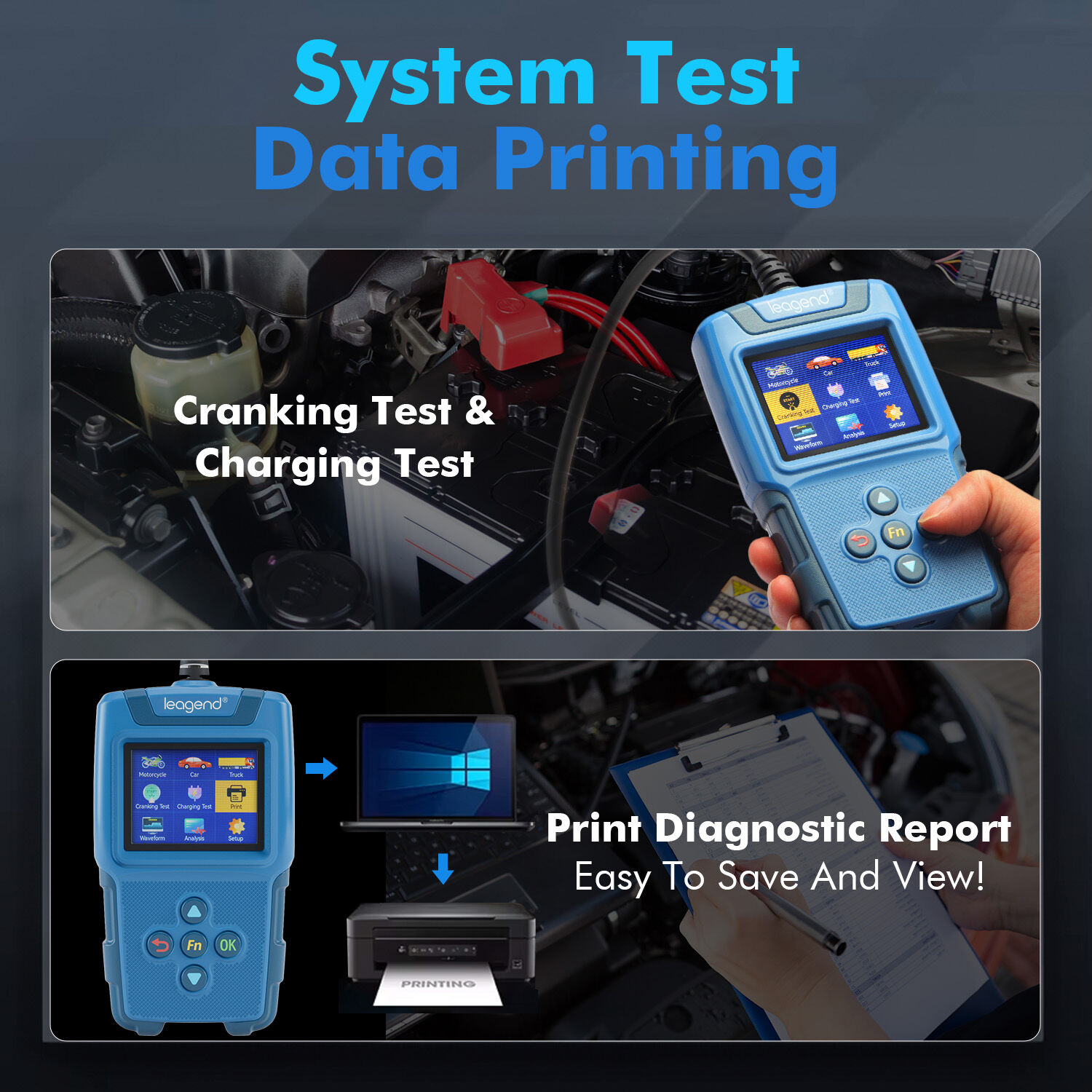

Can print the battery test, cranking test and charging test data by connecting it to a computer via USB.
View voltage and CCA data of motorcycle, car and truck in the form of waveform.
Support 13 languages, including English, French, Dutch, German, Spanish, Italian, Chinese, Japanese, Korean, Russian, Portuguese, Polish and Finnish.
Technical Specifications
Input Voltage Range: 5V~32V DC
Tester Working Temperature: -10°C~60°C (14°F~140°F)
Storage Temperature: -20°C~70°C (-4°F~158°F)
Display: 2.8" TFT colour screen
Dimensions: (L) 160 x (W) 91 x (H) 32 mm
Specifications
| SKU | DM106-BA640 |
| Brand | Ozwide Tools |
