Toyota Fixed Axle Rear Wheel Bearing Press Tool
DM92-1430-AXLE
This kit enables you to remove and reinstall almost any bearing and ABS tone ring (reluctor).
Allows for removal of the wheel bearing without having to remove the ABS ring.
It will fit any symmetrical 4-bolt circle from 100mm to 140mm with 10mm or 12mm studs.
Bolts to the bearing flange and must be used with a 20-ton hydraulic press.
Axle Bearing Puller Set is suitable for:
Toyota 4Runner 1995-2020 / Toyota Hilux 2004-2012,Toyota Tacoma 1995-2004 / Toyota T100 1995-1998 / Toyota FJ

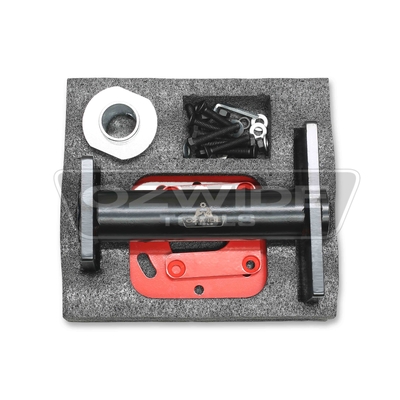

The Set includes axle bearing puller, adapter plate,40mm bearing driver and ABS tone ring.
This kit also includes a 40mm bearing driver. Use this with your puller to install 40mm bearings.
It's tall enough that the bellcrank will clear the press bed. Features a view port so that you can easily see the press action.
PLEASE NOTE: We have been told for the Toyota Hiace 2008 model this tool wlll work to remove the bearing but you still need to remove the ABS ring as the plate does not fit on Hiace models (not sure about later models)
PLEASE NOTE: We have also been told for early model Toyotas without the ABS ring you need to use the DM34-600
(DM92-1430-AXLE)
SKU | DM92-1430-AXLE |
Brand | Ozwide Tools |
Shipping Weight | 7.7000kg |
Shipping Width | 0.300m |
Shipping Height | 0.150m |
Shipping Length | 0.340m |
Unit Of Measure | ea |
