Used to correctly set timing when servicing the timing chain between the crankshaft and the exhaust camshaft sprocket.

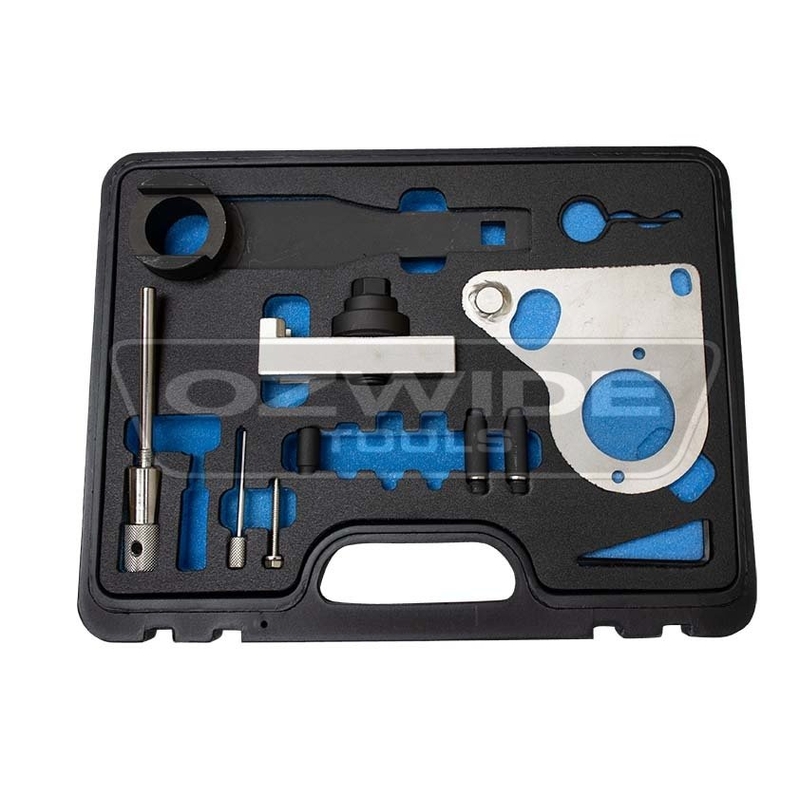

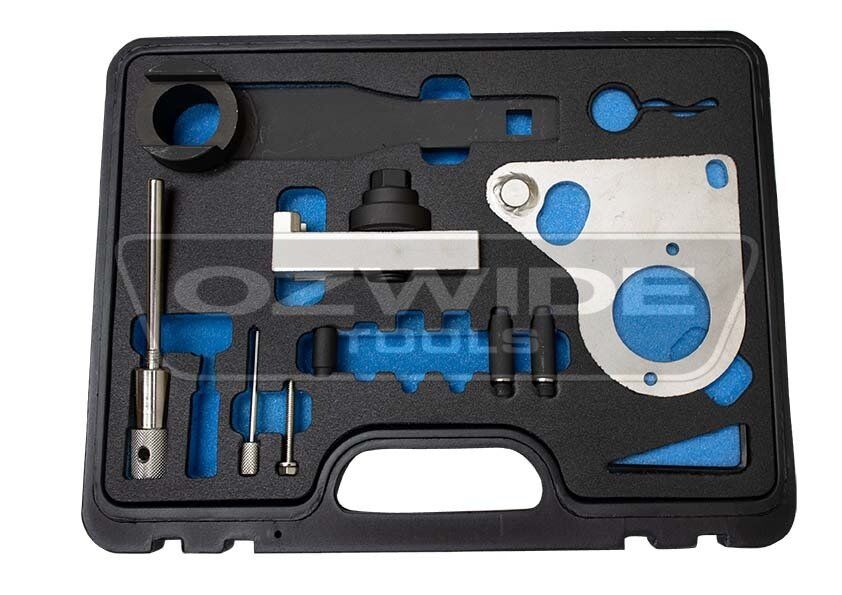

This timing tool set is designed for the 1.6L, 2.0L and 2.3L DCi / CDTi chain driven diesel engine.

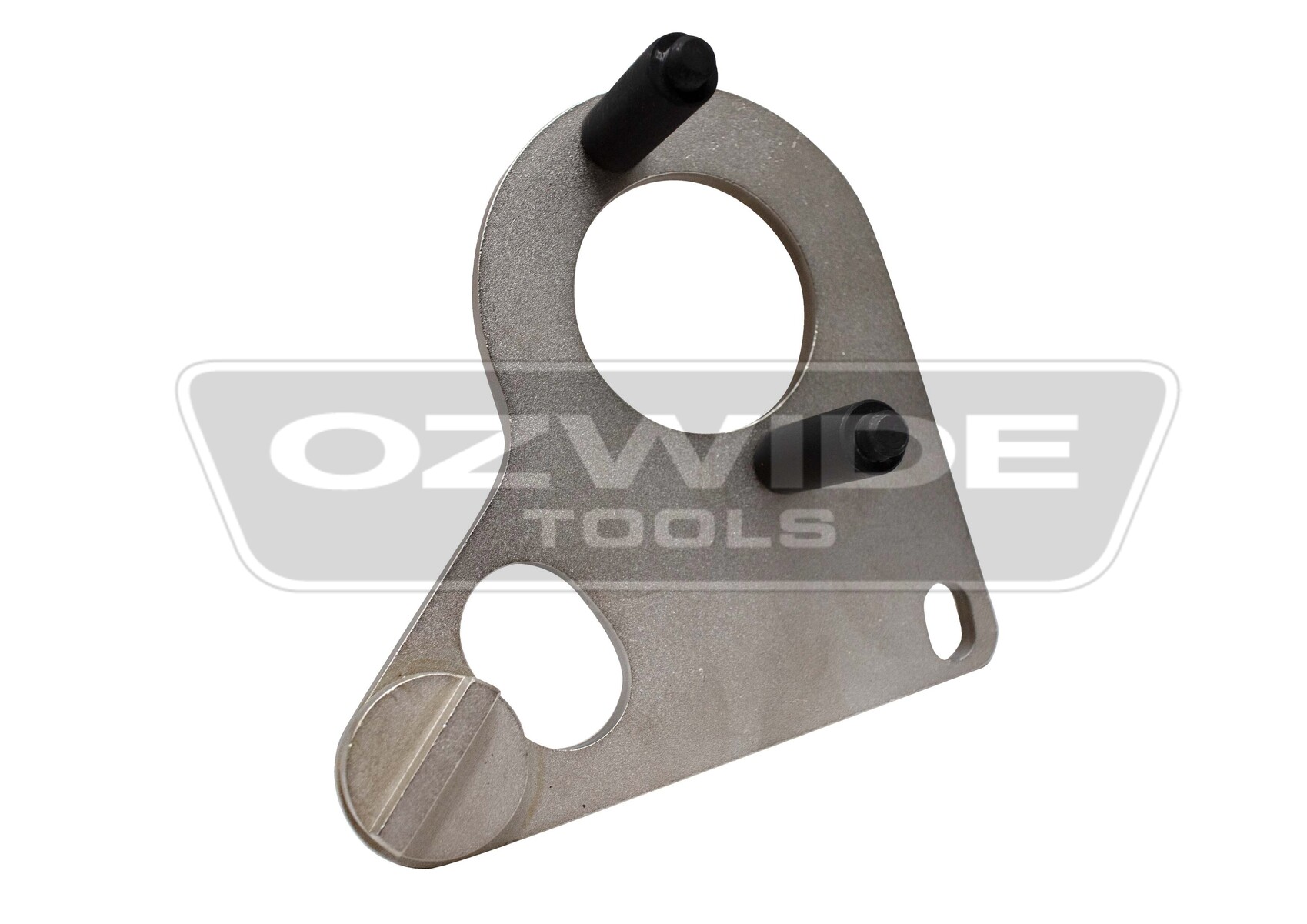

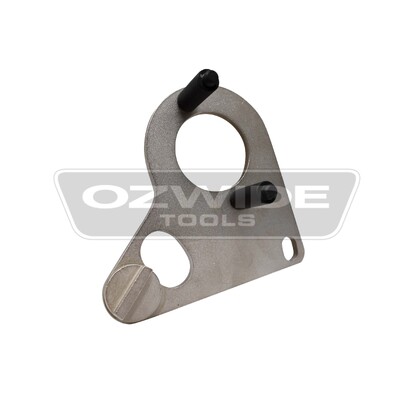

Drive for the Inlet Camshaft is via gears from the Exhaust Camshaft. To set the timing correctly the Inlet Camshaft Gear must first be removed from the engine and the two halves aligned using an Inlet Camshaft Alignment Tool.

Models Nissan:
Dualis (07->)
X-Trail (07->)
Primstar (08-10)
Navara

Models Renual:
Espace
Koleos
Laguna
Megane
Traffic

Engines: M9R / M9T / YS23BBT / YS23DDTT / YS23

OEM: MOT1770 / KM956-1 / MOT1769 / MOT1773 / EN-48330 / MOT1766 / EN-48334 / EN-48332 / EN-48331
