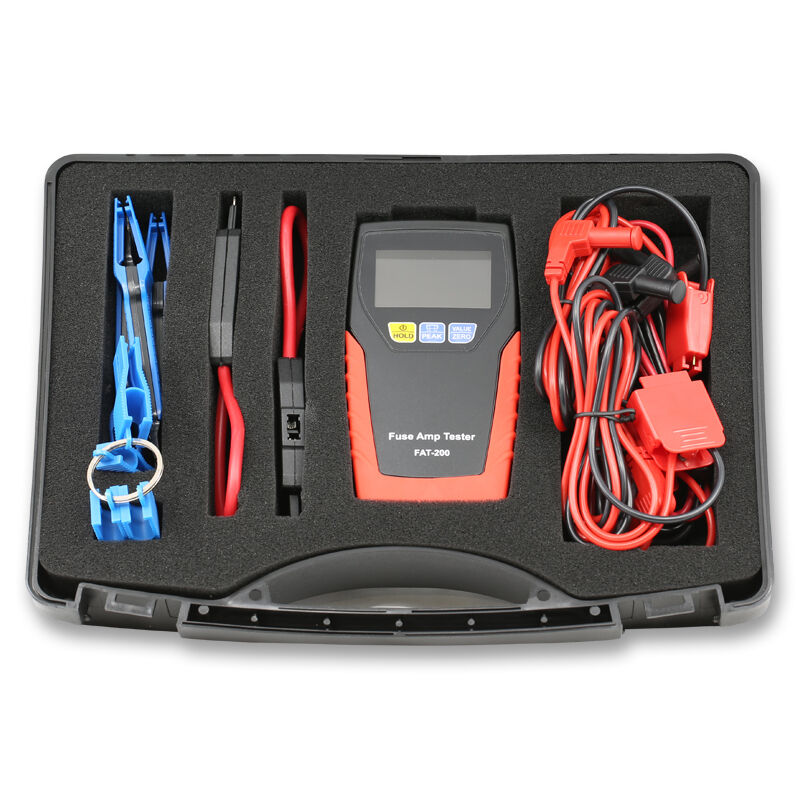

The kit contains following items
1. Fuse Amp Tester DM10-2099
2. Test Leads
3. Automotive Fuse Puller 4Pcs
4. Fuse Loops 20A/ Mini-Blade/ Max-Blade
5. Fuse Terminal Cleaning Kit 3pc

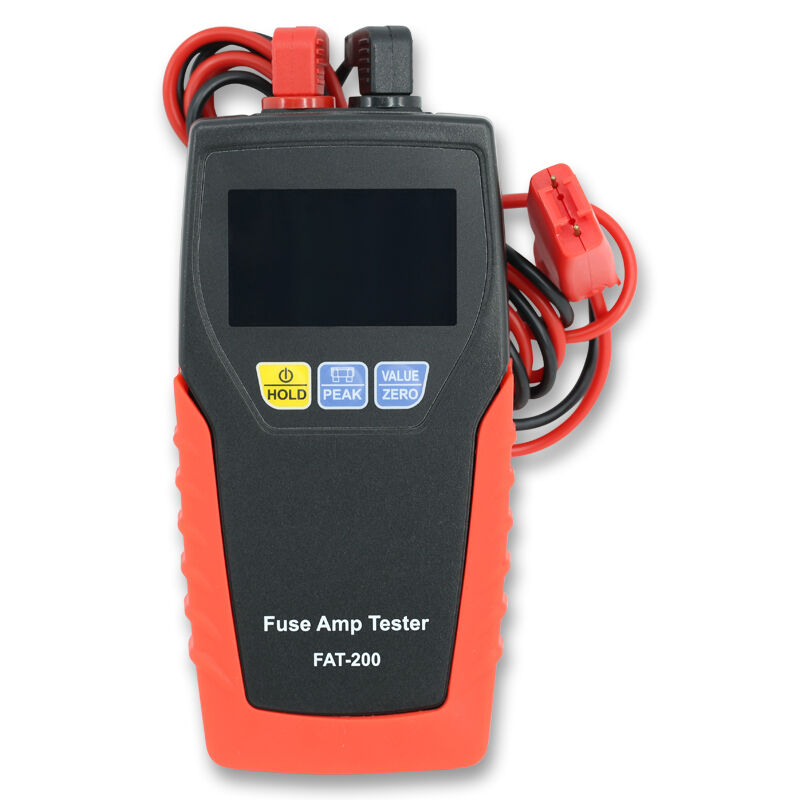

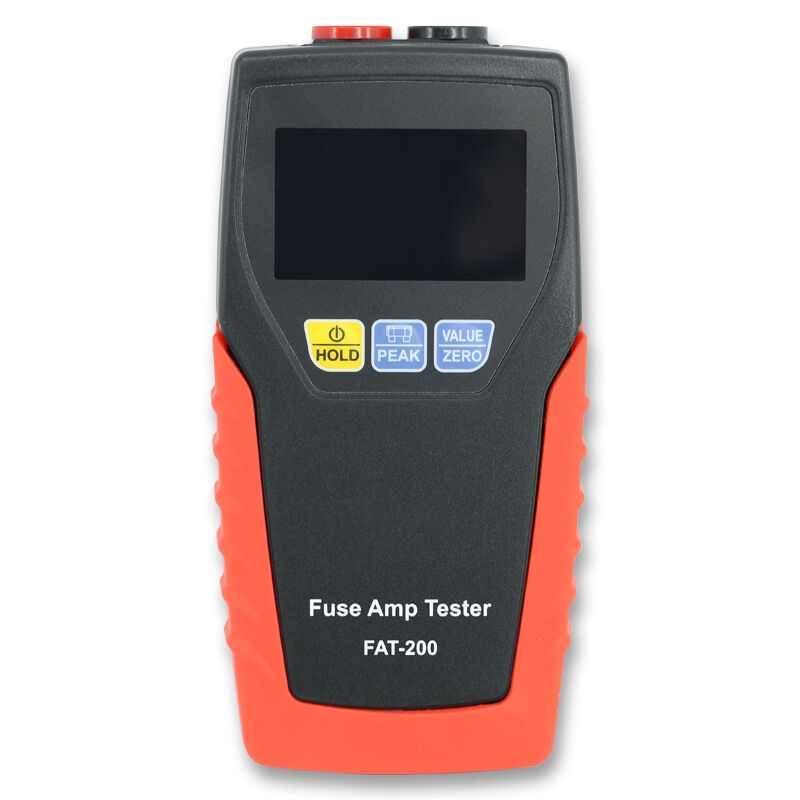

1. Fuse Amp Tester DM10-2099
This product is an automotive fuse amperage tester, controlled by a microprocessor, displays
the measurement results on LCD in a way that measures current very different from an ordinary
multimeter.
It's not necessary to remove the fuse to be tested from the circuit.
The user simply needs to connect tester’s two probes to the two terminals of the fuse and directly read the current.
This tester can measure DC currents as low as 0.01A.
This is a much quicker and easier way to test than previous methods.
Specifications:
LCD Display Colour Segment Display
Rated Current < 40mA
Current Measurement Range 0~50.00A
Measurement Resolution 0.01A
Fuse Type and Rated Current
MIN/LP/MICRO: 5A, 7.5A, 10A, 15A, 20A, 25A, 30A
STD(Standard): 5A, 7.5A, 10A, 15A, 20A, 25A, 30A
MAX: 30A, 40A, 50A
Other Functions HOLD; Peak Measurement; RESET.
Auto Turn-off Without operation, it turns off in 3 minutes.
Dimensions (L*W*H) 340mm*70mm*30mm
Power Supply Voltage 9V alkaline battery
Net Weight 155g

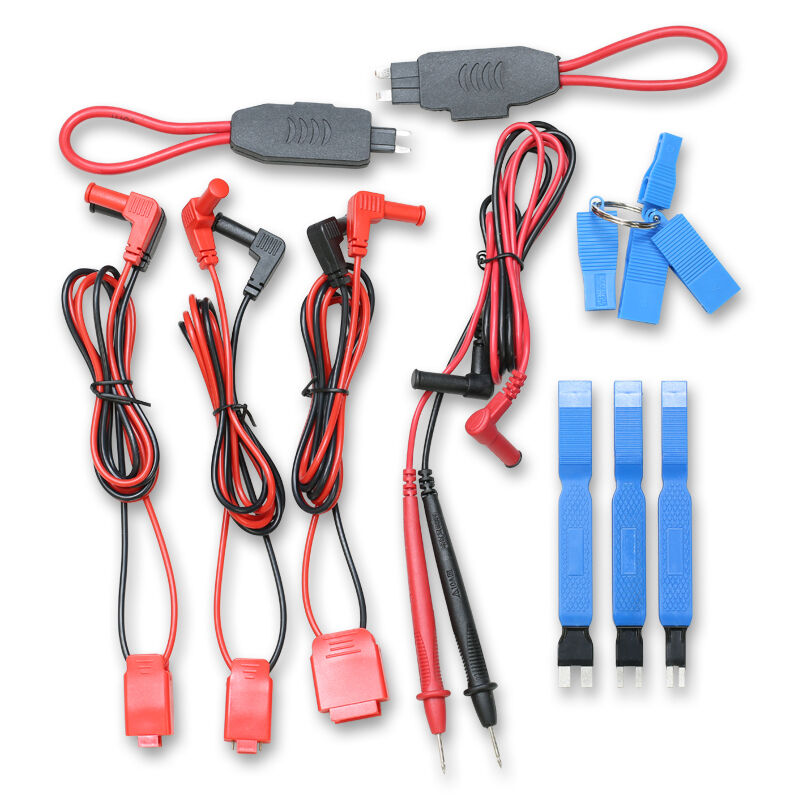

This kit also includes:
3. Fuse Loops
Models:ACET-21 20A/ Max-Blade ACET-21S 20A/ Mini-Blade
Measuring Range 20A/48VDC/AC-10sec.
Accuracy ±2.0% reading
4. Automotive Fuse Puller
Set of 4 ergonomic fuse pullers.
5.Fuse Terminal Cleaning Kit 3pc
3pc set of blade type fuse pullers for the easy removal of the fuse from a holder or the
vehicles fuse box.
Each includes a set of abrasive terminal cleaners to eliminate corrosion & ensure strong
connection.
Includes sizes to suit standard, mini, micro 2 and micro 3 blade fuses.


(DM10-2099)

SKU DM10-2099
Brand Ozwide Tools
Unit Of Measure ea
