SPECIFICATIONS: Applicable Battery Types: Standard Lead Acid, AGM (absorbed glass mat) Flat Plate, AGM Spiral battery, E.F.B. (enhanced flooded battery) and GEL TYPE Batteries.                                                                                                                        Input Power- 220 volts + - 25%. 1500W. 50 Hz.

Inverter technology,

Multiple charging strategies with multiple in-built protections for the vehicle and the charger.Designed and built for modern workshops servicing modern vehicles.

Input Overvoltage (exceeds 275V a/c) and Undervoltage (below 165V a/c) alarm incorporated.

Input Overcurrent  (exceeds 20Amps) alarm incorporated.
Lead Acid Battery Charging Current / Voltage - 20Amps  12volts. Multiple-step charge rate, automatically adjusts to compensate for battery state of charge. Auto shut-off when fully charged.Continuously monitored by the smart controller.

Battery Restoration Mode, for recovery of deeply discharged batteries,

Vehicle Display Mode, to maintain battery charge level for displayed showroom vehicles.

Standard,Fast Charging and Bulk Charging Modes.

Forced Start Mode, for batteries with insufficient charge, to enable cranking and engine start. Max. 400Amps.
Protection will be triggered if, after starting, the current exceeds 150Amps for 1 sec. Or 400Amps for 500msecs.
When Protection is triggered, the output will be interrupted. The OK key will need to be pressed to continue the operation.

Multiple incorporated protections including: Reverse Polarity, Battery Internal Short Circuit, Over Temp, OverVoltage, when charging voltage exceeds 19volts. Short Circuit, If a Short Circuit occurs during charging, either internal to the battery or externally.

Forced Starting Current / Voltage - 400Amps - 12Volts. Warning triggered if output current exceeds 405Amps.

Programming Power Supply Current - 150Amps, ensures a stable Voltage, with minimal ripple,critical  during programming or diagnosis, when the load on the battery changes.e.g. Cycling the ignition or switching on a load.
A Warning is triggered if the current exceeds 155Amps.

Programming Power Supply Voltage Range - 10.8 ~ 16.0Volts, selectable.(different O.E.Ms have their own requirements and must be referred to prior to operation.

PLEASE NOTE: When in Battery Restoration Mode or E.F.B. Charging Mode the battery must be disconnected from the vehicle. Select External Charging.

All functions are displayed on a 2.8in HD colour screen.

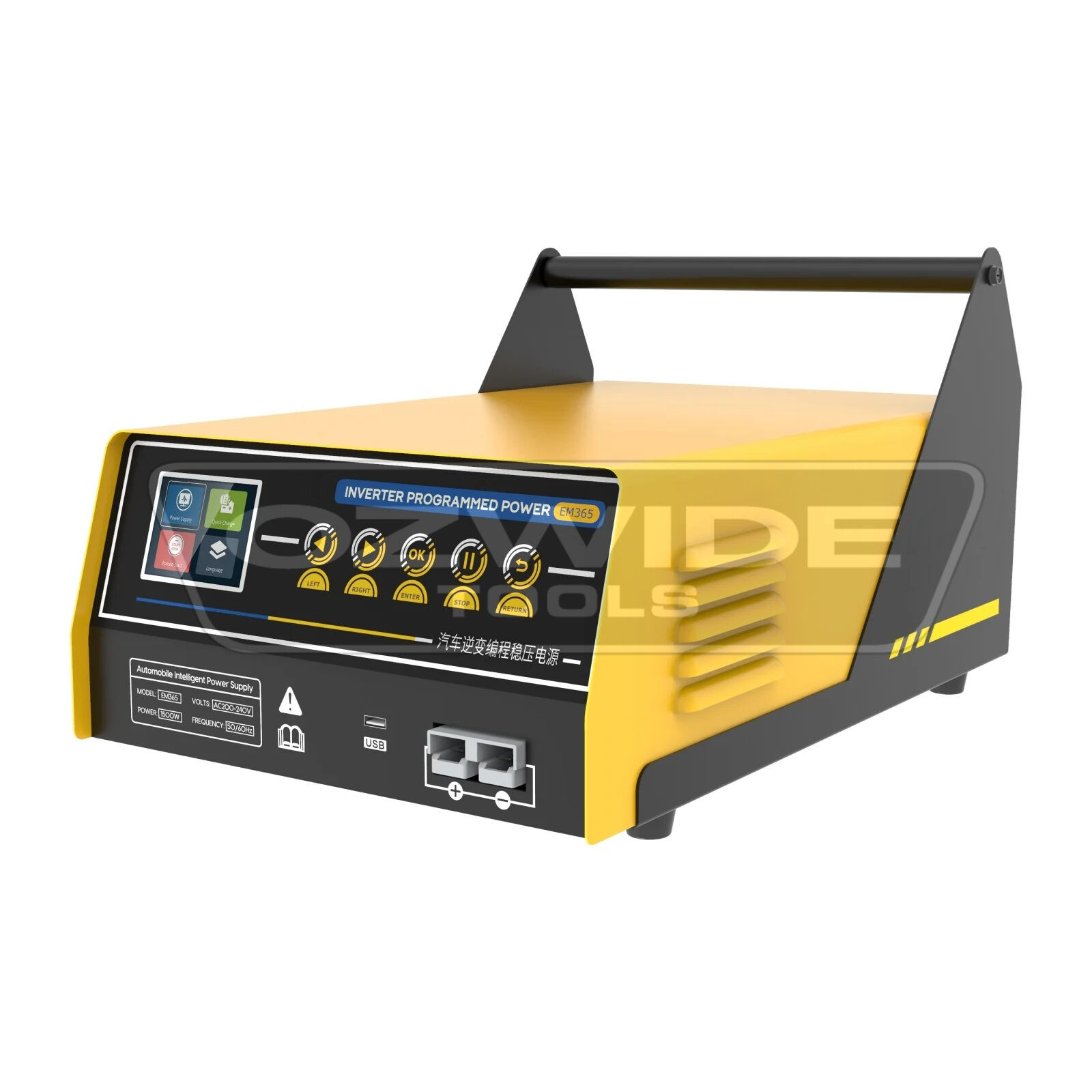

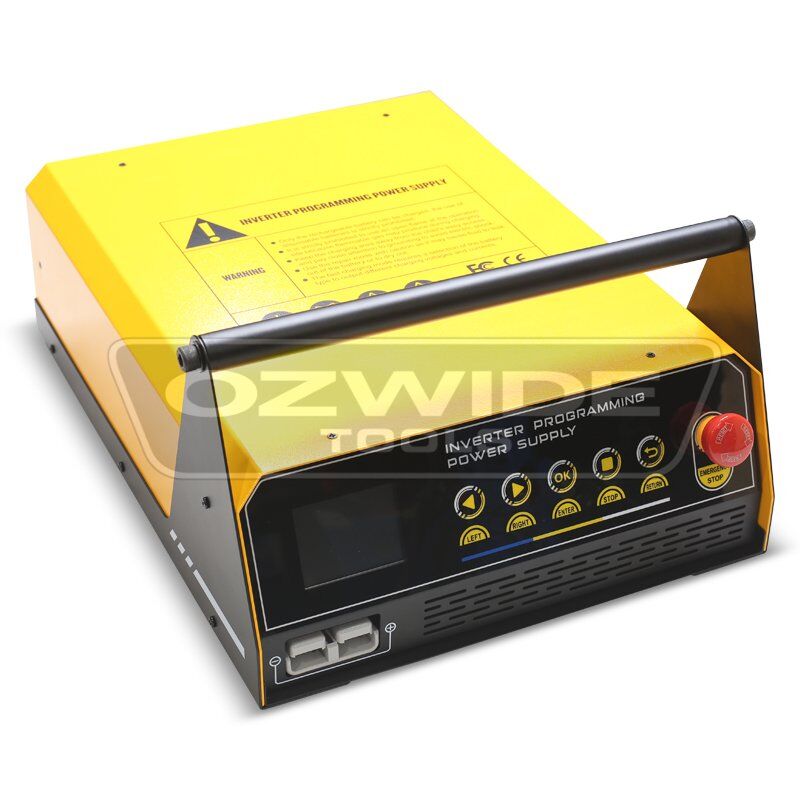

Five function buttons plus an Emergency Stop button located on the front panel plus the output socket and ventilation grille.

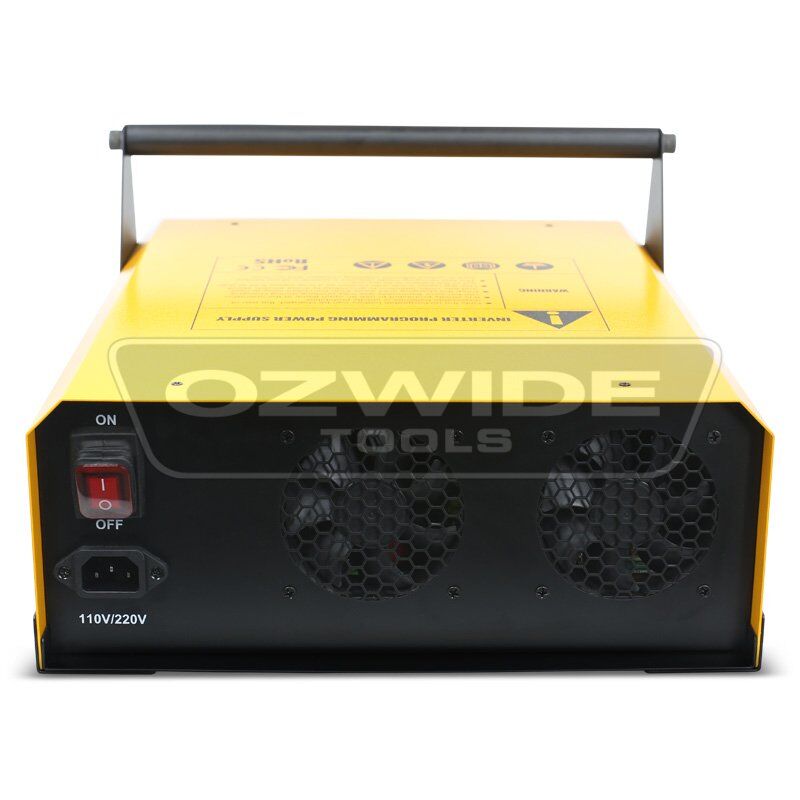

Two cooling fans, power input socket and power switch located on the rear panel.

No Load Power Loss - 6W
Efficiency - 81%
Power Factor - 0.76
Insulation Grade - F
Enclosure Protection Level - IP 21S
Weight - Approx. 12Kg
