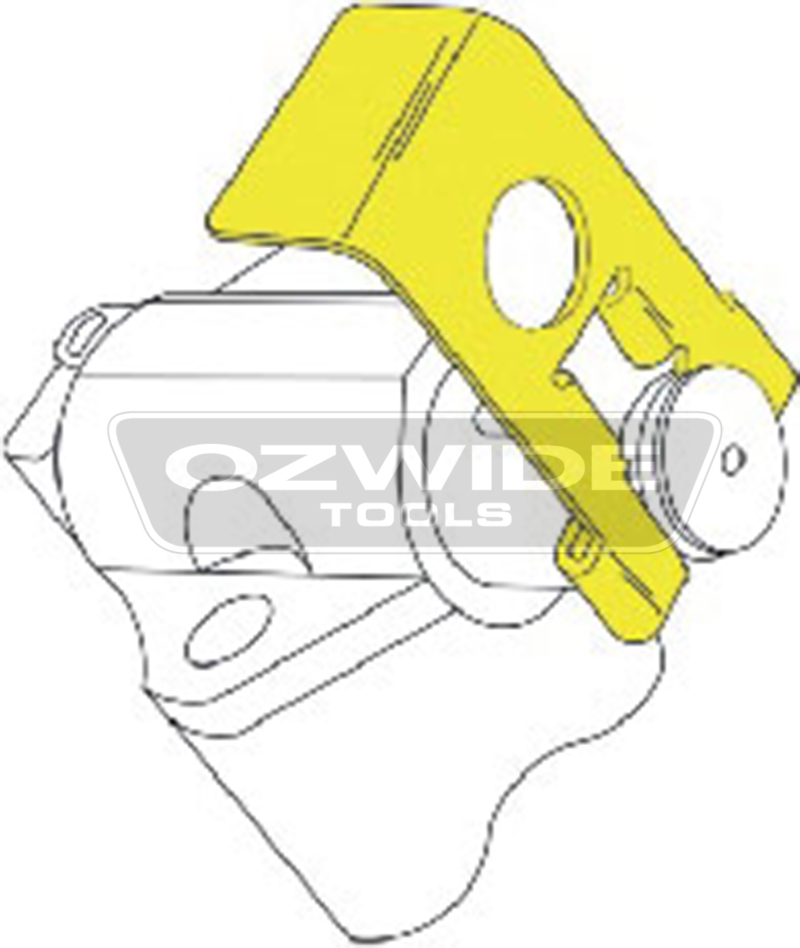

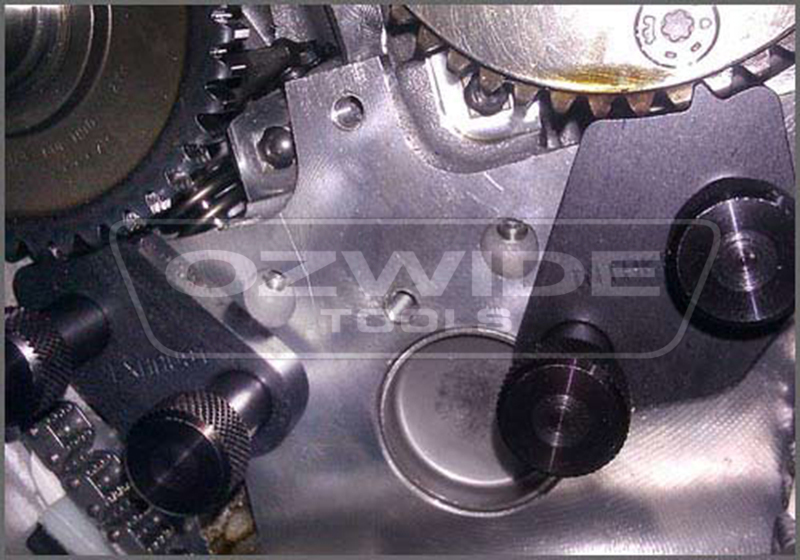

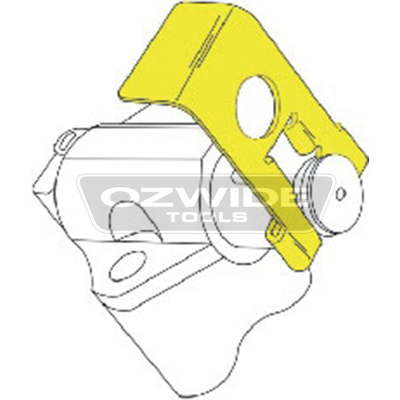

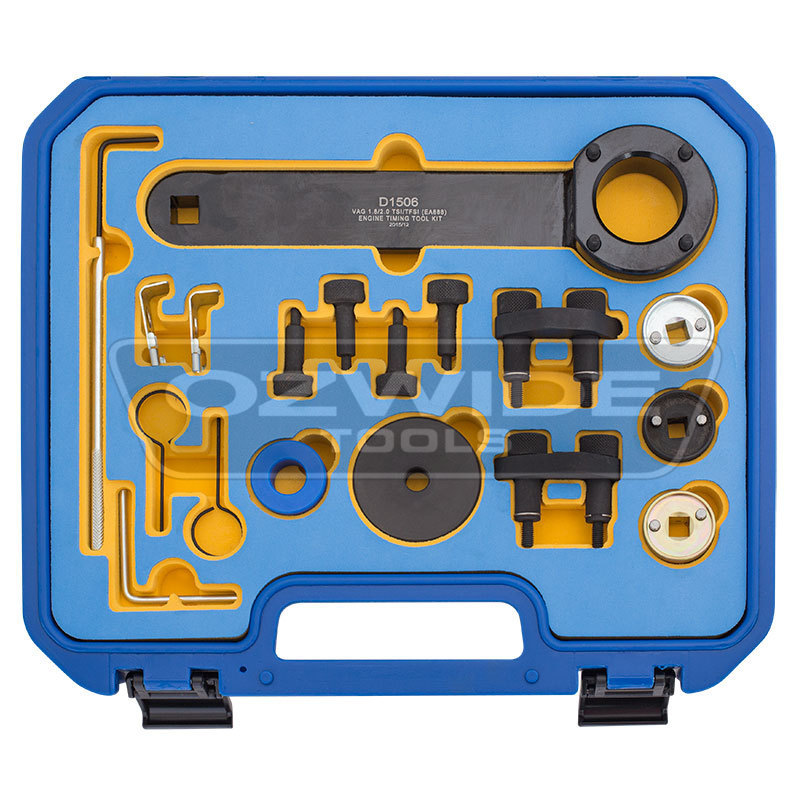

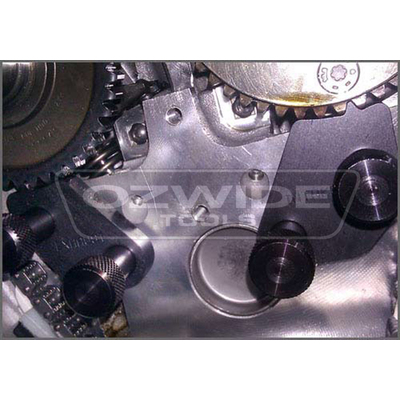

Used to lock camshafts and crankshaft in position when servicing timing chain and setting engine timing.

Used in VW / Audi Engines from 2010 onwards four cylinder EA888 petrol engines.

Also Recommended:
DM11-A1633 - Used to relieve tension on the chain during removal.
DM11-E1506 - Used to remove and align the crankshaft pulley so as not to disturb the engine timing.
DM11-A1692 - Used to rotate camshafts
NOTE:
DM13-8834 - Central valve socket kit may be required if a Golf R or later models from around 2016 onwards

Engines:

• 1.8L Engines: CDAA / CDAB / CDHA / CDHB / CGYA / CJEB
  • 2.0L Engines: CABA / CABB / CABD / CAEB / CCZA / CCZB / CCZC / CCZD / CDNB / CDNC / CDND
                           CESA / CETA / CFKA / CPSA / CAWB / CJXA / CJXB / CJXF

OEM: T40011 / T10352 / T40271-1 / T40271-2 / T10170 / T40265 / T40267 / T10355 / T10368 / T40196

 CHECK OUT THE CLEARANCE KIT WITH THE LINK: DM15-2260D
