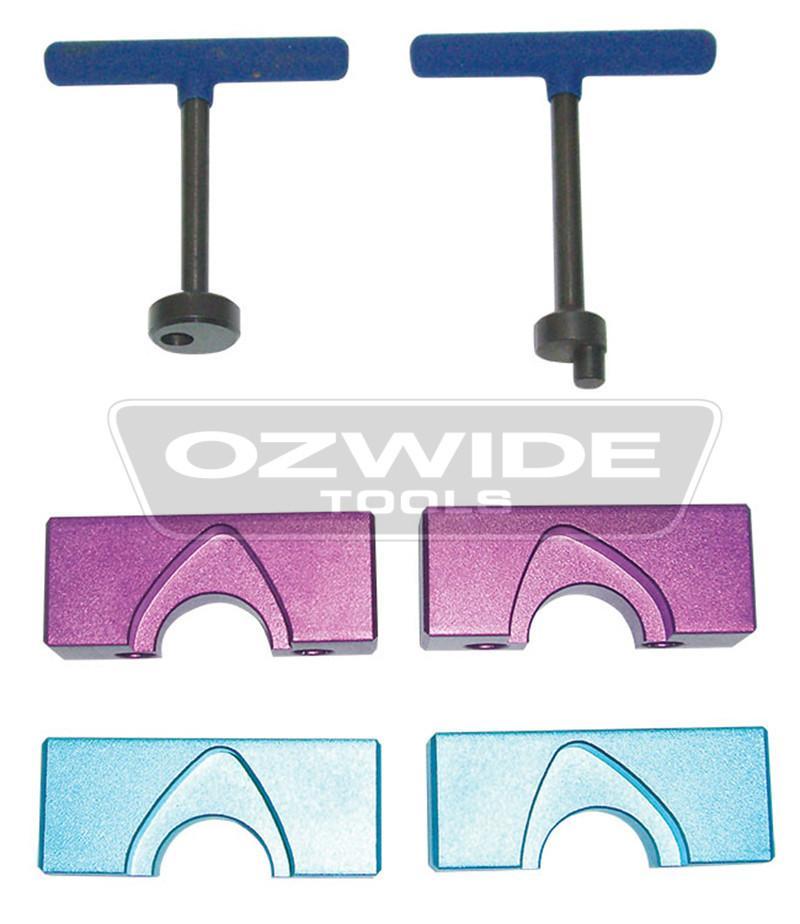

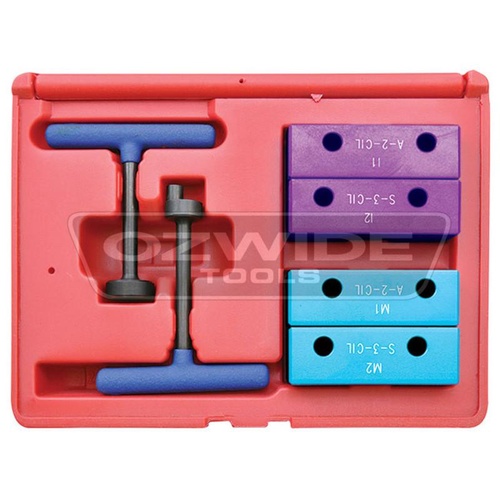

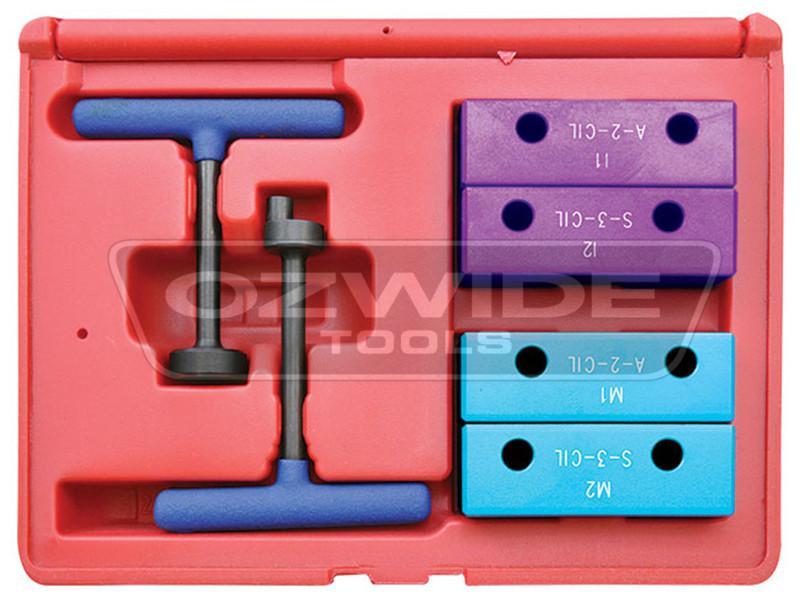

Camshaft setting plates for locking the camshafts in the timed position on Alfa Romeo Twin Spark engines. (The plates are positioned in place of the camshaft bearing caps).

The kit also includes timing and balance shaft belt tensioner adjusters.

TDC positioning tools are also required to time these engines - not supplied in kit. See DM11-B1413-5 and DM11-B1413-2.

Models:

• Alfa Romeo 1.4L / 1.6L
  Purple: 145 / 146 / 155 / 156 (96-01)
• Alfa Romeo 1.8L / 2.0L
  Blue: 145 / 146 (96-01)
            147 (01-07)
            155 / 156 (95-06)
            166 (98-01)
            Spider / GTV (96-03)

Engines: 162.01 / 322.01 / 323.01 / 323.10 / 335.03 / 671.06 / 672.04 / 676.01 / 16201 / 32201 / 32301 / 32310 / 33503 / 67106 /67204 / 67601

OEM: 1825041000 / 1825042000 / 1822154000 / 1822149000 / 182 504 1000 / 182 504 2000 / 182 1554 4000 / 182 214 9000
